Xirgo Technologies
XT2594
Contact manufacturer
SalesXirgo Technologies

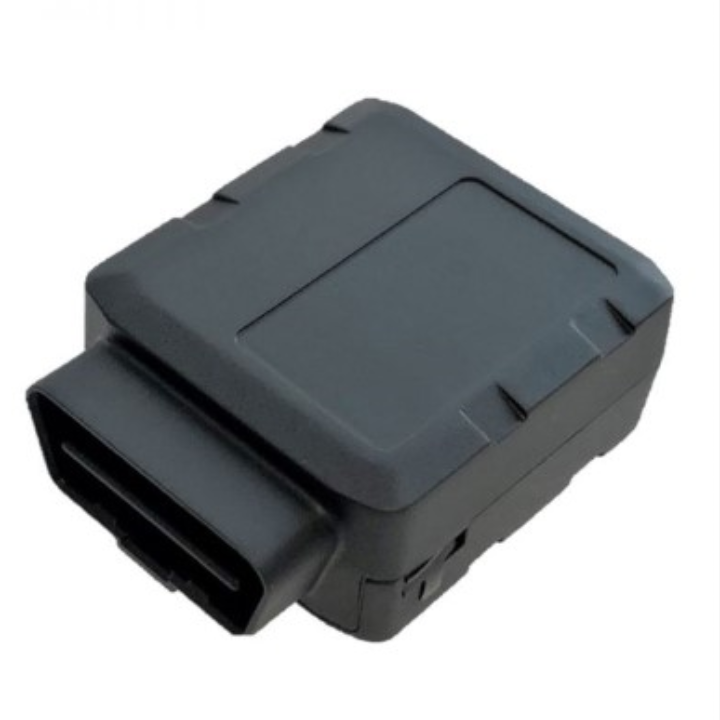

XT2594
Key features
- Vehicle OBDII Interface
- Telematics
- External I/O Ports
- Light Duty and Heavy Duty Trucks
Product description
A versatile device that can include an optional Bluetooth interface for ELD applications and optional internal battery and buzzer for driver behavior alerts. The device can be expanded by connecting to an external XT1065 I/O box.
Overview
- Device type
- Asset Tracking
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
Last Gasp - Optional
Display resolution
N/A
Ethernet ports
0
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
9 - 32 VDC, 12 VDC Typical
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
2.63x1.49x1.06 in.
Weight
2 oz
Operating Temperature
-25 °C to +70 °C
Storage Temperature
—
Relative Humidity
90% Non-Condensating
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Transportation
