eze System Inc
ezeio mkII
Contact manufacturer
Saleseze System Inc

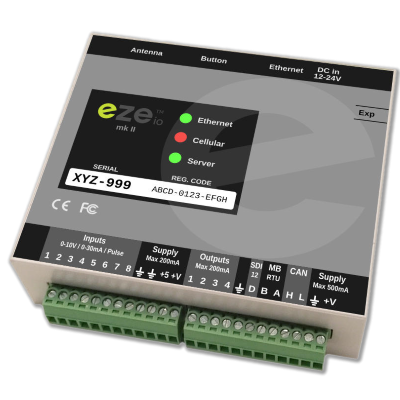

ezeio mkII
Key features
- Remote data logger & controller
- Secure management and consolidation through cloud back end
- Analog, Pulse, Modbus RTU, CAN and SDI-12 compatible
- Monitor, Log, Alarm, Control and Automate - fully remote management
Product description
Powerful & flexible Data logger & Controller. Analog inputs and field bus connections to industry standard on-site sensors, devices and actuators. Automatic, secure synchronization of data and configuration with easy to use cloud back end. Monitoring & logging of any type of pulse, voltage or current sensor, Modbus RTU, SDI-12 and CAN connectivity. Alarming, remote control and automation functionality. Multi-user, multi-site consolidated management via web UI.
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
External
Battery
n/a
Display resolution
n/a
Ethernet ports
1
SIM type
Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
eUICC GSMA Architecture Type:
—
USB ports
0
Voltage supply
12-24VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- Checked
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
RTOS
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
90x116x33mm in.
Weight
5oz lbs
Operating Temperature
-20 °F to °F
Storage Temperature
-30 °F
Relative Humidity
5-95
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
Shared key, AES128
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band13 (700 MHz)
