Geometris LP

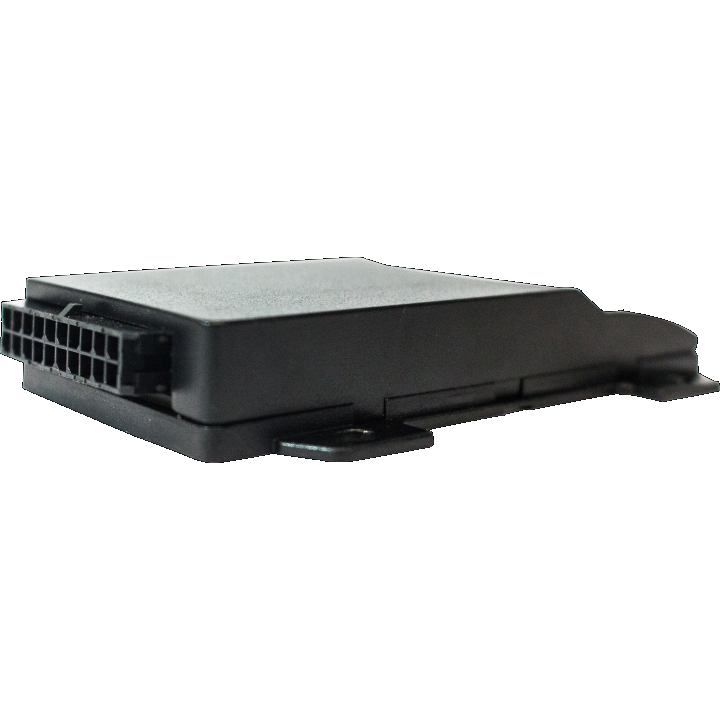

whereQube AVL - 68B Series

Key features
  • Asset Tracker
  • 2 Wire install capable
  • Driver Behavior
  • Starter Disable
See more
Product description

Asset Tracking Device that can provide location information, driver behavior, geo-fence alerts, ignition state, idling state, distance traveled, starter disable, panic button input, and additional inputs and outputs. Can be installed with a two wire install and still determine vehicle or equipment ignition state.

See more
Overview
Device type
Asset Tracking
Network technology
LTE Only
LTE category support
Cat M1
Hardware
Antenna

Battery

320mAh Li-Polymer

Display resolution

Ethernet ports

0

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

8V to 32V

Other features
Accelerometer
Checked
Z-Wave
Audio
Battery safety
Checked
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
Checked
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

LWM2M

Operating System

Other


Developer Kit
Diagnostics
Security Level
EMS
MMS
Remote Management
SMS Capability
Checked
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

3.62x2.44x0.61 in.

Weight

1.7 oz

Operating Temperature

-10 °C to 60 °C

Storage Temperature

-20 °C to 65 °C

Relative Humidity

90% non-condensing


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
LTE

Band4 (1700 MHz)

Band13 (700 MHz)
