Telit Wireless Solutions Inc

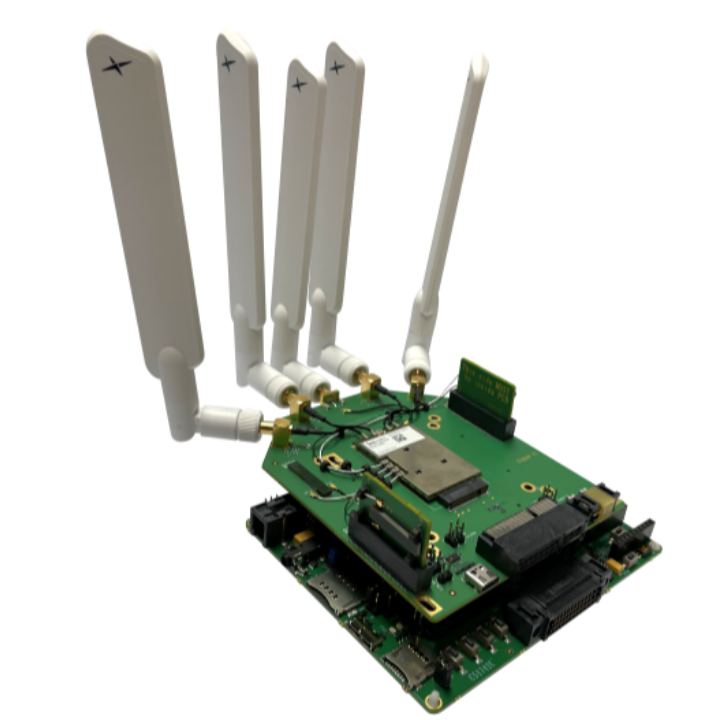

Telit 5G LP IoT Eval Kit

Key features
  • LP mmWave, NR Sub-6, cellular and GNSS connectivity
  • Module specific circuitry which is not part of the generic circuitry of the EVB
  • Board to Board connectors for interfacing to EVB main board
  • PCIe connector, USB Type C connector, RESET button and status LED
  • 12v DC jack
See more
Product description

The Telit development kit lets you evaluate and prototype complete 5G NR FR2 Low Power and NR Sub-6 device concepts. Telit 5G LP development kit exposes module interfaces, allowing you to test your application comfortably. The development kit includes main board, interface board, data board, micro USB cable, lets you customize your LP mmWave antenna performance experience by using 2,3 or 4 antennas, cellular and GNSS antenna set, power supply adaptor and cable.

See more
Overview
Device type
Development Kit
Network technology
LTE with 5G NR
LTE category support
Cat 20
Link to Module Info
Hardware
Antenna

External

Battery

Display resolution

Ethernet ports

SIM type

Standard/Industrial Micro SIM (3FF)

Compatible 3FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-3FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-3FF-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-3FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK3FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK3FF-HD-GD-D
  • M2MTRI-NONRUG-ST-S
  • BULK3FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I


USB ports

1

Voltage supply

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
Checked
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
Checked
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
SMS Capability
Checked
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

Weight

Operating Temperature

Storage Temperature

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band48 (3500 MHz)

Band66 (1700 MHz)

LTE Global / Roaming

Band1 (2100MHz)

Band3 (1800MHz)

Band7 (2600 MHz)

Band14 (700 MHz)

Band40 (2300 MHz)

Band46 (5200 MHz)

5G

FR1 (Sub6) n2

FR1 (Sub6) n5

FR1 (Sub6) n48

FR1 (Sub6) n66

FR1 (Sub6) n77

FR1 Roaming Band n77

FR1 Roaming Band n78

FR2 (mmWave) n260

FR2 (mmWave) n261
