InHand Networks

IG502-FQ33-IO-W-G

Key features
  • Python 3
  • Edge computing
  • Digital IOs
  • GPS and Wi-Fi
  • Data acquisition
See more

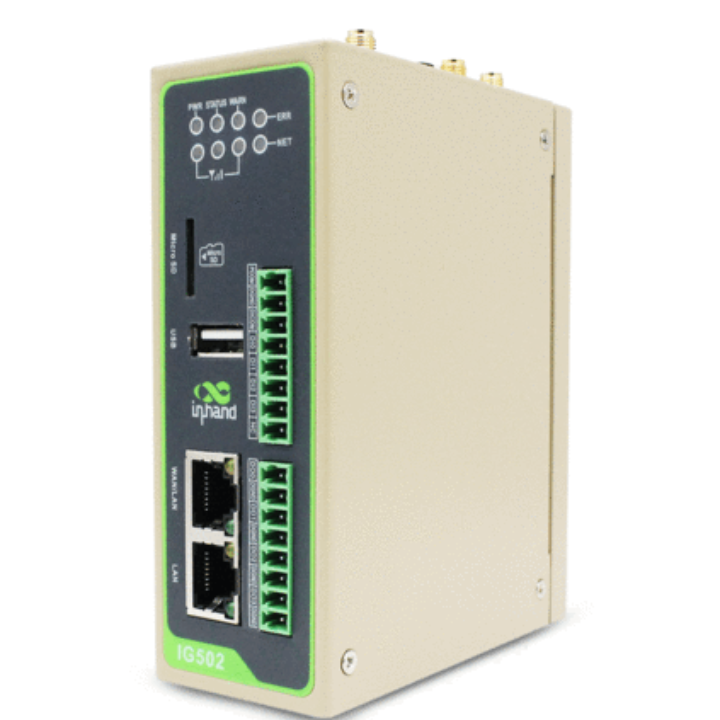

Product description

The InGateway502 is a new-generation IoT edge gateway of InHand Networks. With pre-integrated major industrial protocols such as Modbus TCP/RTU and IoT platforms such as MS Azure and AWS, the IG502 makes it much easier and faster to get your data collected and uploaded – with a few clicks. Being Python programmable, the IG502 enables users to develop their own applications based on specific business. Extensive interfaces offer more choices for different scenarios.

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS
LTE category support
Cat 1
Hardware
Antenna

—

Battery

NA

Display resolution

NA

Ethernet ports

2

Dual SIM type

SIM1 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

SIM2 - Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

12-48V DC

Other features
Accelerometer
—
Z-Wave
—
Audio
—
Battery safety
—
Bluetooth
—
Camera
—
Dual SIM
Checked
E911
—
eUICC
—
Expansion card slots
—
GNSS
Checked
GPS
Checked

Keyboard
—
Magnetic card reader
—
Printer
—
RJ-11
—
Scanning technology
—
Serial
Checked
Smart card reader
—
Voice transmission capable
—
Wifi
Checked
Zigbee
—
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

LWM2M

Operating System

Linux


Developer Kit
—
Diagnostics
—
Security Level
—
EMS
—
MMS
—
Remote Management
Checked
SMS Capability
Checked
WEA (Wireless Emergency Alert)
—
Persistent Prefix IPv6
—
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
—
Split Data Routing (aka Dual APN)
—
Multi-APN
—
Global Capable
—
Private Wireless Network (On Site)
—
Chassis
Dimensions

12.7x10.8x3.5 in.

Weight

15 oz

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Relative Humidity

5-95%


Rain & dust resistance
—
Vehicle Mounting
—
Network
NAT

DNAT

Routing Protocols

Static routing

Security Protocol

HTTPS and SSH

VPN Support

OpenVPN

Numbershare

N - no Numbershare


Fax capable
—
Firewall
—
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)
