Xirgo
CP4S
Contact manufacturer
SalesAddress
1016 Lunt Avenue, Schaumburg, IL 60193
Phone
312-981-8774 option 1
Xirgo
CP4S
Key features
- HD Video - up to 4 channels
- 4 Alarm input triggers, 1 Alarm output
- 6-Axis Accelerometer
- GPS/Glonass
- REST API available
Product description

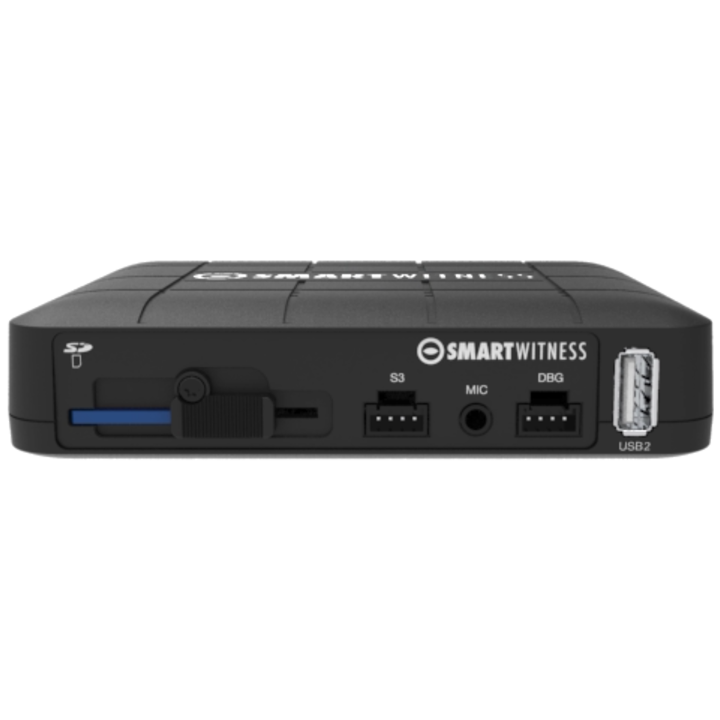

The SmartWitness CPS is a 4 channel HD video telematics device recorder for vehicles with built-in LTE (CAT4), G-sensor, Gyro, Microphone, GPS, and 128GB storage. CP4 offers commercial fleet owners an effective risk reducing means to aid in the investigation process, decrease collateral damages associated with car accidents, encourage safe driving, monitor driving behaviors, and enhance the overall safety on the road.
Overview
- Device type
- Vehicle Monitoring
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
0
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12VDC, 3A
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- Checked
- Battery safety
- —
- Bluetooth
- —
- Camera
- Checked
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- Checked
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
4.75x3.55x1.1 in.
Weight
—
Operating Temperature
-10 °C to 55 °C
Storage Temperature
-20 °C to 85 °C
Relative Humidity
33%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Insurance
Transportation
