Xirgo Technologies
XT6383
Contact manufacturer
SalesXirgo Technologies
XT6383
Key features
- Supports LTE Cat-1 Bands 4, 13
- Accelerometer and Motion Detector
- I/O’s include 5 Digital Inputs, 1 Analog Input, 3 Outputs, 2 1-Wire Bus, 2 RS232
- Garmin™ Fleet Management Interface
- Supports SMS, UDP, FTP & Over-the-air application firmware upgrade
Product description

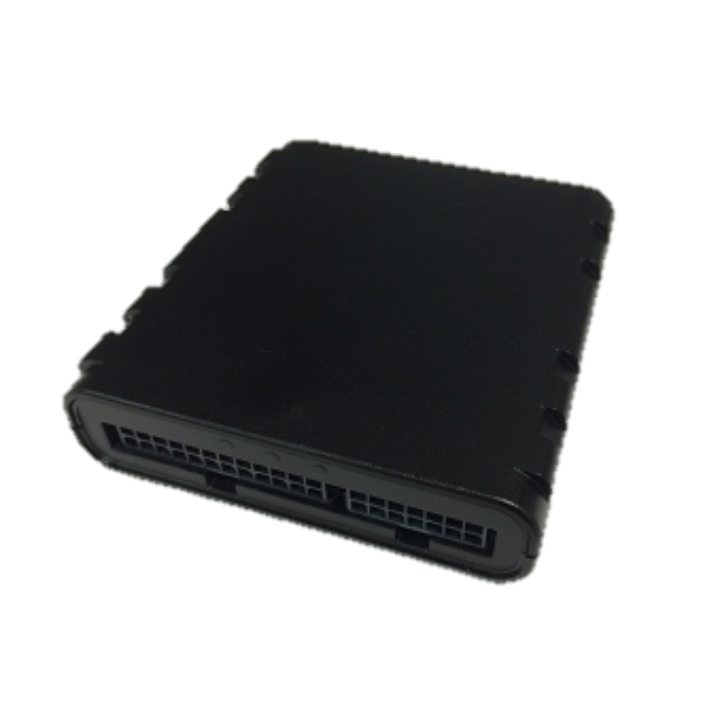

XT6383 is a tracking solution with optional OBDII and JBUS to support a wide range of vehicle protocols including passenger, light to heavy duty trucks, and commercial equipment. Geofences provide fleet managers with greater control and monitoring with instant notifications.
Overview
- Device type
- Asset Tracking
- Network technology
- LTE Only
- LTE category support
- Cat 1
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
—
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
—
Voltage supply
9V to 28V
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
3.35x3.1x0.8 in.
Weight
2.8 lbs
Operating Temperature
-30 °F to 60 °F
Storage Temperature
-40 °F
Relative Humidity
95%, 70C, non-condensiing
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Distribution
Transportation
