Netgear

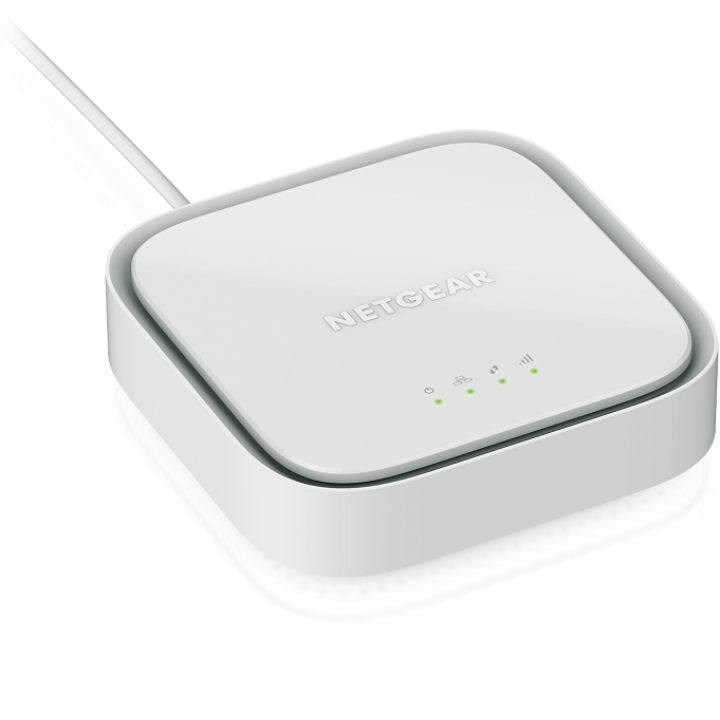

LM1200 LTE Modem
Netgear
LM1200 LTE Modem
Key features
- Fast, reliable and instant LTE connection
- Gigabit Ethernet Ports
- Works with Any Wireless Routers and WiFi systems
- Compact, modern design
Product description
Low cost LTE with 3G fallback modem featuring high-speed Internet connection via a GiGe Ethernet port. The modem operates in the IP Pass through (Bridge) mode and allow only 1 LAN connection.
Overview
- Device type
- Modem
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
None
Display resolution
None
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
5.0V (device comes with AC power adaptor)
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
Chassis
Dimensions
4.56x4.56x1.27 in.
Weight
—
Operating Temperature
45 °C to °C
Storage Temperature
-25 °C to 55 °C
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
RFC 3022, 4787, 5382; Support up to 64K concurrent dynamic NAT sessions
Routing Protocols
IPv4 basic routing; Static routing; Dynamic routing RIPv1, RIPv2B/M
Security Protocol
LTE and WCDMA related
VPN Support
No built-on VPN. Host PC can install its own VPN client.
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- Checked
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band14 (700 MHz)
