Nomad Digital Ltd.
R5001 CCU
Contact manufacturer
SalesAddress
Nomad Digital Inc., Suite 201, 9707 Key West Avenue, Rockville, MD 20850, USA
Phone
+1 (240) 479-4633
Nomad Digital Ltd.
R5001 CCU
Key features
- Railway Communication, Bandwidth aggregation, High bandwidth, 1/10Gig Ethernet
Product description

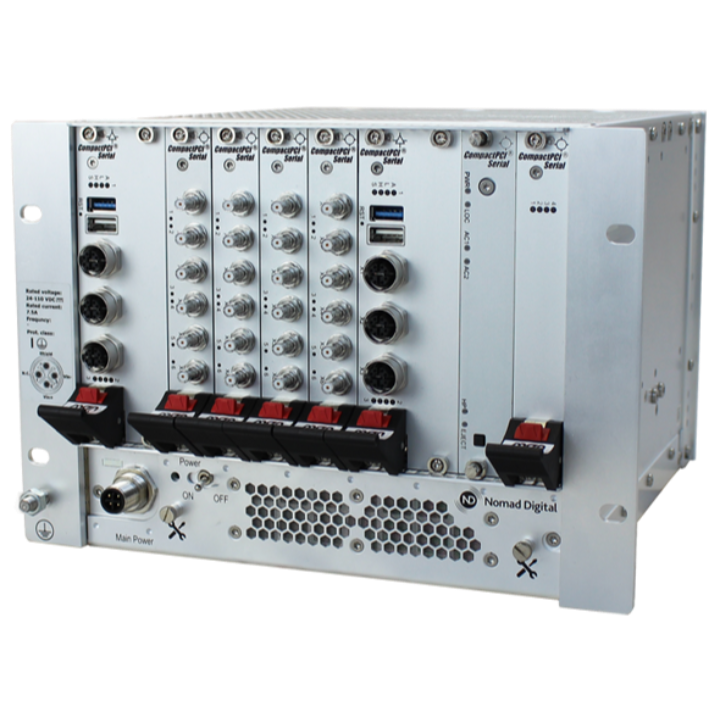

Nomad Digital’s R5001 rugged high performance Communications Control Unit (CCU) for mobile communications systems is designed for high data throughput applications in harsh environments, such as railway rolling stock.
The R5001 is a cost-effective and future-proofed system based on open standard CompactPCI® Serial.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 11
Hardware
Antenna
—
Battery
None
Display resolution
None
Ethernet ports
3
Dual SIM type
SIM1 - Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
2
Voltage supply
16.8 to 137.5VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
25.88x17.746x25.46 in.
Weight
13.106 lbs
Operating Temperature
-40 °C to +70 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
5-95%
- Rain & dust resistance
- —
- Vehicle Mounting
- Checked
Network
NAT
As all traffic is point to point, no direct NATting is required. Traffic encapsulated within the tunnel which is destined for the public internet is NATted at our datacentre.
Routing Protocols
All traffic across the cellular network will be point to point between the modem and a defined end point located at our datacentre. Traffic encapsulated within the tunnel is then routed across private IP ranges on both the train and ground side.
Security Protocol
The Telit LM940 modules are used to provide a train to ground layer 3 link which is implemented as a tunnel using plain, unencrypted UDP
VPN Support
As documented above, traffic across the cellular link is plain, unencrypted UDP. Traffic encapsulated within the tunnel can support any layer 3 encryption such as IPSec, hence multiple VPNs can be established. This is transparent to the cellular link.
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Transportation
