Uticor Technologies

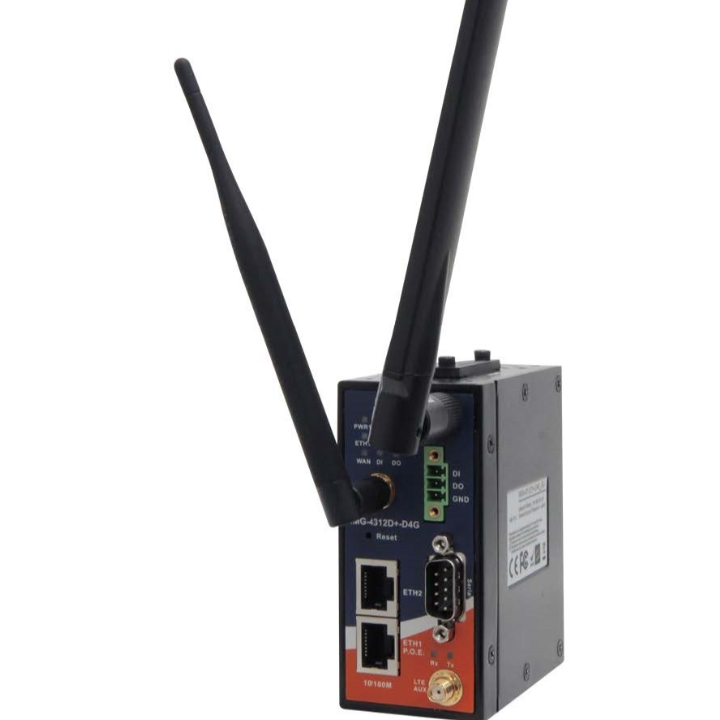

Wireless/Cellular IoT Router
Contact manufacturer
SalesUticor Technologies
Wireless/Cellular IoT Router
Key features
- Industrial IoT Modem/Router
- Supports Modbus TCP/IP, RTU, MQTT, Sparkplug B, CoAP and LWM2M protocols
- 1 Digital Input & 1 Digital Output Onboard
- M2M Gateway for Remote Access & Data Collection
- Support Open Gateway, DHCP Server & Forwarding, VPN
Product description
The Uticor wireless and cellular router or IoT gateway offers M2M communications and remote data collection from the plant factory floor. It can remotely collect data from PLCs, machines, networks and sensors and transfer that data to the cloud for production monitoring and preventative maintenance. The router can be used as edge of network device (edge to cloud) for Industry 4.0 applications or simply as a VPN tunnel for secured remote access to a control system.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
12-48 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
3.17x1.77x3.74 in.
Weight
0.88 lbs
Operating Temperature
-20 °F to 60 °F
Storage Temperature
-20 °F to 60 °F
Relative Humidity
5-95% humidty
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Network Address Translation is supported
Routing Protocols
—
Security Protocol
—
VPN Support
Open VPN, PPTP, IPSec
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Agricultural
Construction
Distribution
Government
Healthcare
Industrial / Manufacturing
Oil and Gas
Pharmaceutical
Transportation
Utilities
