Peplink

MAX Adapter

Key features
  • Rugged 4G LTE Redundant SIM Router with Failover License Available
  • Bandwidth Control, Content Filtering, Web Blocking, QoS, Captive Portal
  • Secure 256bit Site-to-Site VPN Support
  • Customizable Captive Portal
See more
Product description

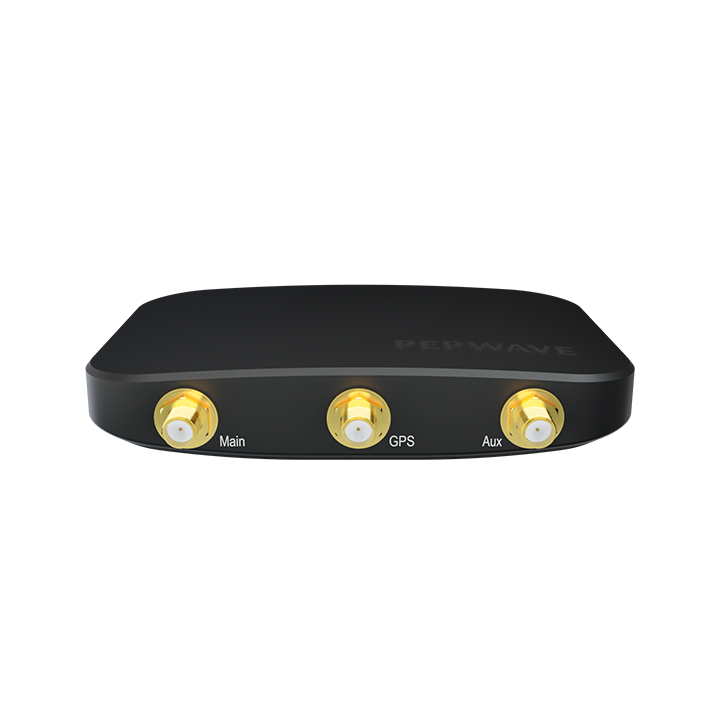

Embedded 4G model supporting 4G LTE. and it offers redundant SIM slots. with GPS standalone and remote management. Technologies and frequency bands supported: 4G LTE (Band 2/4/5/13/48/66); LTE, DC-HSPA , HSPA .

See more
Overview
Device type
Router
Network technology
LTE with GSM/UMTS
LTE category support
Cat 12
Hardware
Antenna

External

Battery

NA

Display resolution

NA

Ethernet ports

0

SIM type

Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:

For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I







USB ports

1

Voltage supply

5V USB-C

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
GNSS
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Non Verizon FoTA Solution (only)

Operating System

Linux


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
Checked
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Private Network
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Chassis
Dimensions

3.9x2.8x0.6 in.

Weight

Operating Temperature

32 °F to 104 °F

Storage Temperature

32 °F to 104 °F

Relative Humidity

15% – 95% (non-condensing)


Rain & dust resistance
Vehicle Mounting
Network
NAT

One-to-one, one-to-many

Routing Protocols

Static, Dynamic, OSPF, RIPv2, BGP

Security Protocol

Yes

VPN Support

PepVPN, IPSec, L2TP

Numbershare

No Numbershare


Fax capable
Firewall
Checked
UMTS
Checked
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)

Band66 (1700 MHz)
