Option
CloudGate LTE WW
Contact manufacturer
SalesAddress
Gaston Geenslaan 14, 3001 Leuven, Belgium
Phone
+32 478 451 431
Option
CloudGate LTE WW
Key features
- IoT Gateway
- LTE/UMTS/GSM
- GNSS (GPS/GLONASS)
- Ethernet ports (2x)
- Expansion card slots (2x)
Product description

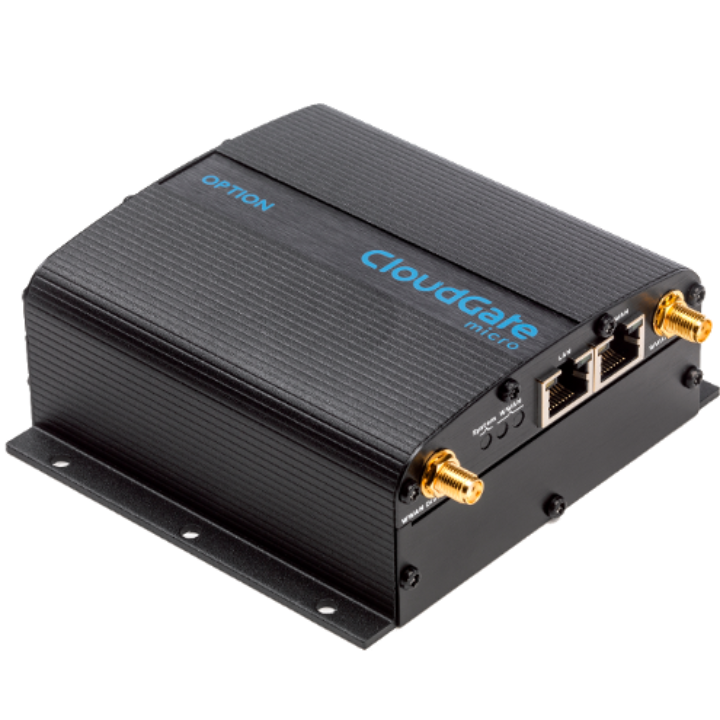

CloudGate LTE WW is an IoT gateway with GPS/EDGE/WCDMA and LTE available technologies. In addition, there is GNSS available, while ethernet is accessible via LAN and LAN/WAN port. There are two expansion slots (front and rear) which can be used for adding the expansion cards for WLAN, I/O interfaces, Serial Connectors, Smart Metering card, etc. and enlarge number of use cases of this device.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
Optional item
Display resolution
N.A.
Ethernet ports
2
SIM type
Standard/Industrial Micro SIM (3FF)
Compatible 3FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-3FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-3FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-3FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT M1 (Cat 1, Cat 2, Cat 3, Cat 4 and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK3FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK3FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK3FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
9-33 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- Checked
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
Chassis
Dimensions
4.52x4.00x1.73 in.
Weight
0.63 lbs
Operating Temperature
-30/+70 °C
Storage Temperature
-40/+85 °C
Relative Humidity
5% - 95% non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Supported for IPV4, not for IPV6
Routing Protocols
—
Security Protocol
—
VPN Support
IPSEC
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
