InHand Networks

IR302-FQ33-WLAN

Contact manufacturer
Sales
Address

3900 JERMANTOWN RD STE 150

Phone

7033482988

InHand Networks

IR302-FQ33-WLAN

Key features
  • IoT Router
  • Web-based M2M router
  • Compact cellular router
  • Industrial temperature
  • Compact side
See more
Product description

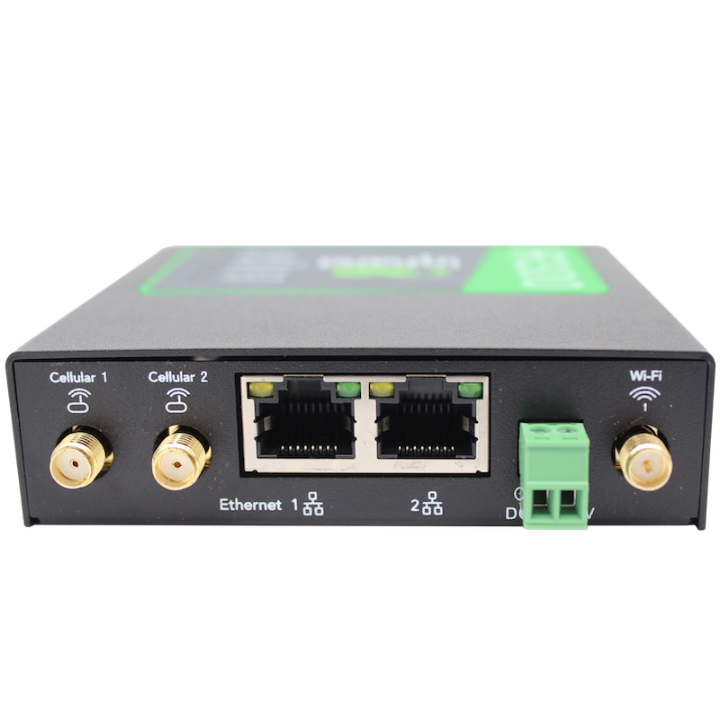

IR300 is a compact, cost-effective, and secure industrial 4G VPN router, equipped with two Ethernet ports, two SIM holders, and a Wi-Fi interface. It provides easy, reliable, and secure internet connectivity. The IR300 can be used in a wide range of industrial and commercial IoT applications, delivering an option of a good balance between cost and performance.

See more
Overview
Device type
Router
Network technology
LTE Only
LTE category support
Cat 1
Hardware
Antenna

Battery

NA

Display resolution

NA

Ethernet ports

2

Dual SIM type

SIM1 - Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

SIM2 - Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

9-36V DC

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
Dual SIM
Checked
E911
eUICC
Expansion card slots
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ-11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Checked
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

OMADM

Operating System

Linux


Developer Kit
Diagnostics
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
MMS
Remote Management
Checked
SMS Capability
Checked
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Network Slicing
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Global IoT Orchestration Capable
Private Wireless Network (On Site)
Chassis
Dimensions

9x9x2.5 in.

Weight

8.5 oz

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Relative Humidity

5 ~ 95% (non-condensing)


Rain & dust resistance
Vehicle Mounting
Network
NAT

SNAT, DNAT

Routing Protocols

Static routing

Security Protocol

SSH, HTTPS

VPN Support

IPsec, L2TP, GRE, OpenVPN

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)
