CIMCON Lighting Inc.
iSLC LTE-M
Contact manufacturer
SalesAddress
Cimcon Lighting, 200 Summit Drive Suite 500, South Tower Burlington, MA 01803
Phone
978-320-4002
CIMCON Lighting Inc.
iSLC LTE-M
Key features
- lighting controller
- LTE-M/NB-IOT, GPS, Optional Sensor Inputs, Dimming Interface
Product description

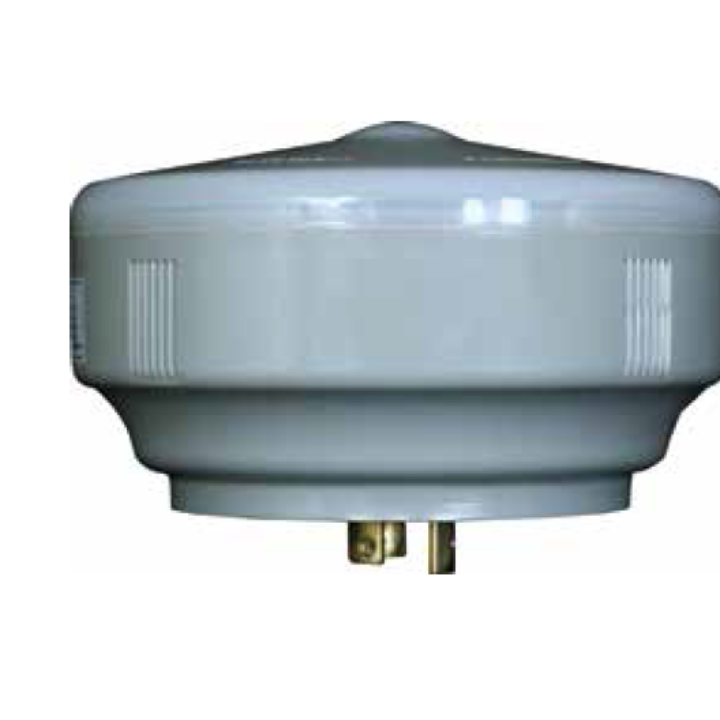

Plug & Play Wireless Lighting Controller (iSLC) with LTE-M/NB-IOT CELLULAR SMART MODEM, Remote Monitoring, Dimming, GPS, Metering and Sensor Input Capabilities
Overview
- Device type
- Asset Tracking
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
NA
Display resolution
NA
Ethernet ports
0
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
AC input 100 V-277 V (+/- 10%), 50/60 Hz
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
11.5x11.5x6.8 cm.
Weight
0.75 lbs
Operating Temperature
-40 °C to 70 °C
Storage Temperature
-40 °C to 70 °C
Relative Humidity
20% to 90% Rh non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
Industries
Utilities
