Microhard Systems Inc.

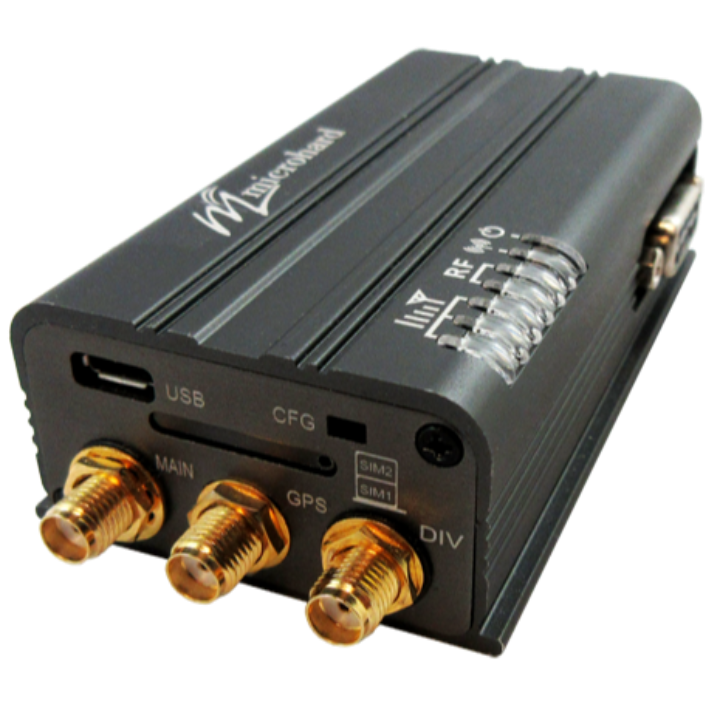

BulletCAT12
Contact manufacturer
SalesAddress
150 Country Hills Landing N.W. Calgary, Alberta, Canada T3K 5P3
Phone
403-248-0028
Microhard Systems Inc.
BulletCAT12
Key features
- CAT12 LTE Operation, Standalone GPS, Firewall w/ACL Security, Gigabit Ethernet w/PoE
- RS232/485 Serial Data Port, Programmable Analog/Digital Inputs, Digital Outputs
- Enhanced Port Forwarding, DMZ, IP-Passthrough, SMS Alerts and Control
- VPN, IPSec with IKE/ISAKMP, Multiple Tunnel Support (16), L2TP, Site to Site, GRE Tunnel
- Microhard NMS Integration, Local/Remote firmware upgradable, SCADA (PLCs, RTUs, Modbus)
Product description
The BulletCAT12 provides a feature packed, compact industrial strength wireless solution using robust LTE Advanced CA technology for critical data communications. This Bullet provides incredibly fast CAT12 LTE connections with speeds of up to 600 Mbps for today's data intensive applications.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 12
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
1
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
7 - 30VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
1.75x3.25x1.0 in.
Weight
4.8 oz
Operating Temperature
-40 °C to +85 °C
Storage Temperature
—
Relative Humidity
5-95%, non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band7 (2600 MHz)
