Digi International Inc.
TX54-A246
Key features
- Gigabit WAN/LAN Ethernet switch (4-port)
- High speed 867 Gbps 802.11ac Wi-Fi for WAN or LAN service
- Multi-constellation: Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
Product description

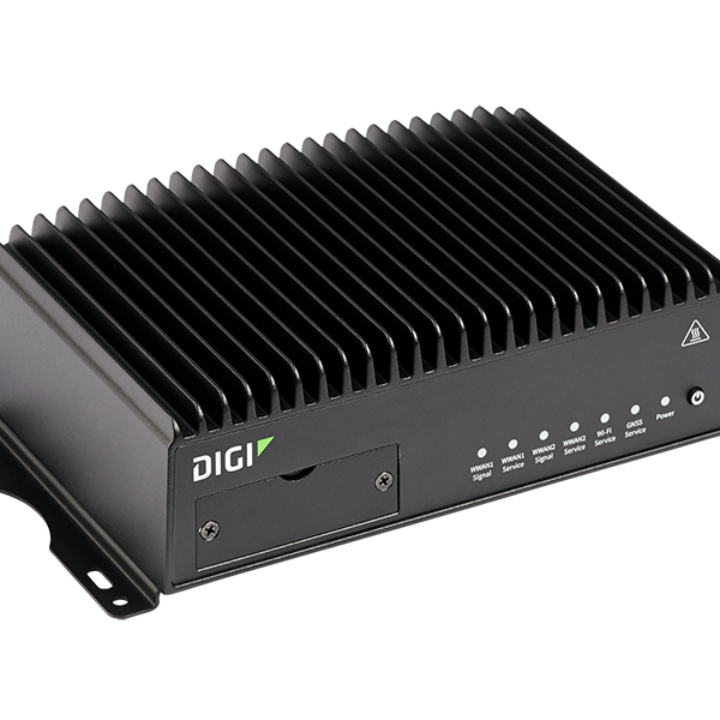

The versatility and performance of Digi® TX54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. The Digi TX54 provides secure routing and gateway functions across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 12
Hardware
Antenna
—
Battery
NA
Display resolution
NA
Ethernet ports
4
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
9 - 36 VDC, 30W minimum power source required
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- —
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
5.75x8.25x2.5 in.
Weight
3.3 lbs
Operating Temperature
-34 °C to 74 °C
Storage Temperature
-40 °C to 80 °C
Relative Humidity
5% to 95% (non-condensing)
- Rain & dust resistance
- Checked
- Vehicle Mounting
- Checked
Network
NAT
Yes, NAT support through NAPT IP port forwarding and NAT traversal
Routing Protocols
IP pass-through; NAT, NAPT with IP port forwarding; Ethernet bridging; GRE; Multicast routing; Routing protocols: RIP (v1, v2) OSPF, BGP; IP failover: VRRP; automatic failover, Digi SureLink®
Security Protocol
Stateful firewall
VPN Support
IPSec with IKEv1, IKEv2, NAT Traversal; OpenVPN client and server; GRE VPN tunnels; Cryptology: SHA-1/256/384/512, MD5, RSA; Encryption: 3DES and AES up to 256-bit (CBC mode for IPsec); Diffie Hellman: DH groups 1-32 (CURVE448)
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band14 (700 MHz)
