Microhard Systems Inc.

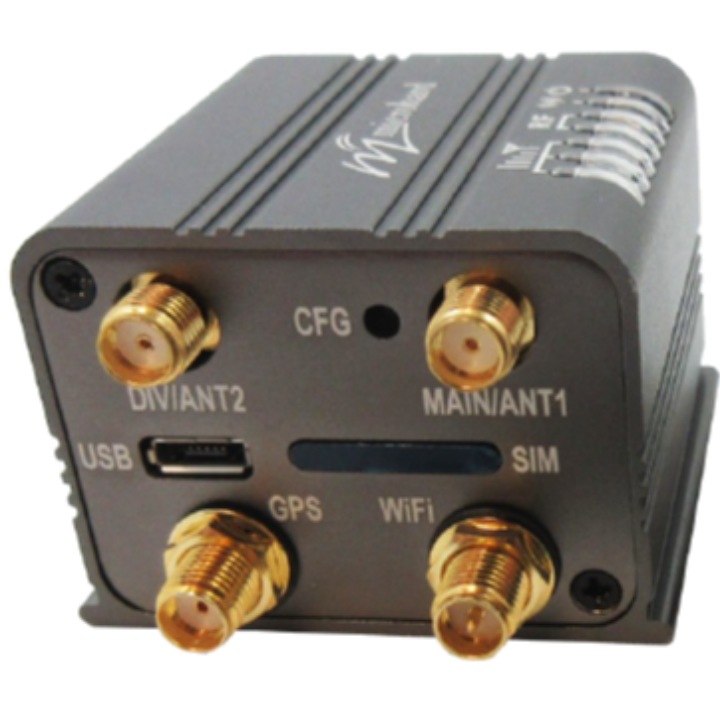

LTECube-CAT4-GL-WiFi-ALO

Contact manufacturer
Sales
Address

150 Country Hills Landing N.W. Calgary, Alberta T3K 5P3 Canada

Phone

(403) 248-0028

Email
info@microhardcorp.com
Microhard Systems Inc.

LTECube-CAT4-GL-WiFi-ALO

Key features
  • Multi-Band Support for Global Use, HSPA/WCDMA/EDGE/GPRS Compatible
  • Global Band Support, 802.11b/g/n WIFI, USB Direct Connect
  • Wide Operating Temp (-40C to +85C), IP-Passthrough, SMS Alerts, Control
  • VPN, IPSec with IKE/ISAKMP, L2TP, Site to Site Tunneling, Enhanced Port Forwarding, DMZ
  • Microhard NMS Integration, Local/Remote firmware upgradable
See more
Product description

The LTECube-GL was engineered specifically for the small size, low cost, and low power requirements of the IoT & M2M applications that are expanding across the globe. The LTECube-GL provides compatibilty on globe Cellular Networks, and fast 150 Mbps CAT4 LTE connections. The LTECube-GL features WIFI, Standalone GPS and flexible tunneling capabilities all while retaining low power consumption.

See more
Overview
Device type
Airborne
Network technology
LTE Only
LTE category support
Cat 4
Hardware
Antenna

—

Battery

—

Display resolution

—

Ethernet ports

1

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

—

Other features
Accelerometer
—
Z-Wave
—
Audio
—
Battery safety
—
Bluetooth
—
Camera
—
E911
—
eUICC
—
Expansion card slots
—
GNSS
—
GPS
Checked

Keyboard
—
Magnetic card reader
—
Printer
—
RJ-11
—
Scanning technology
—
Serial
—
Smart card reader
—
Voice transmission capable
—
Wifi
Checked
Zigbee
—
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

OMADM

Operating System

Other


Developer Kit
—
Diagnostics
Checked
Security Level
Security Level 1
(Regular OD devices. Minimum security requirements mandated.)
EMS
—
MMS
—
Remote Management
Checked
SMS Capability
Checked
WEA (Wireless Emergency Alert)
—
Persistent Prefix IPv6
—
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
—
Split Data Routing (aka Dual APN)
—
Multi-APN
—
Global Capable
—
Private Wireless Network (On Site)
LTE Licensed
Chassis
Dimensions

1.75x1.75x1.35 in.

Weight

—

Operating Temperature

85 °C to °C

Storage Temperature

—

Relative Humidity

5-95%, non-condensing


Rain & dust resistance
—
Vehicle Mounting
—
Network
NAT

—

Routing Protocols

—

Security Protocol

Firewall with ACL Security

VPN Support

VPN, IPSec with IKE/ISAKMP Multiple Tunnel Support (16) L2TP, Site to Site Tunneling

Numbershare

N - no Numbershare


Fax capable
—
Firewall
Checked
UMTS
—
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

Contact
Website

www.microhardcorp.com

Technical support
Address
150 Country Hills Landing N.W. Calgary, Alberta T3K 5P3 Canada
Phone

(403) 248-0028

Email

yguan@microhardcorp.com

Industries

ALO (Airborne LTE Operations)
