Lanner Electronics Inc

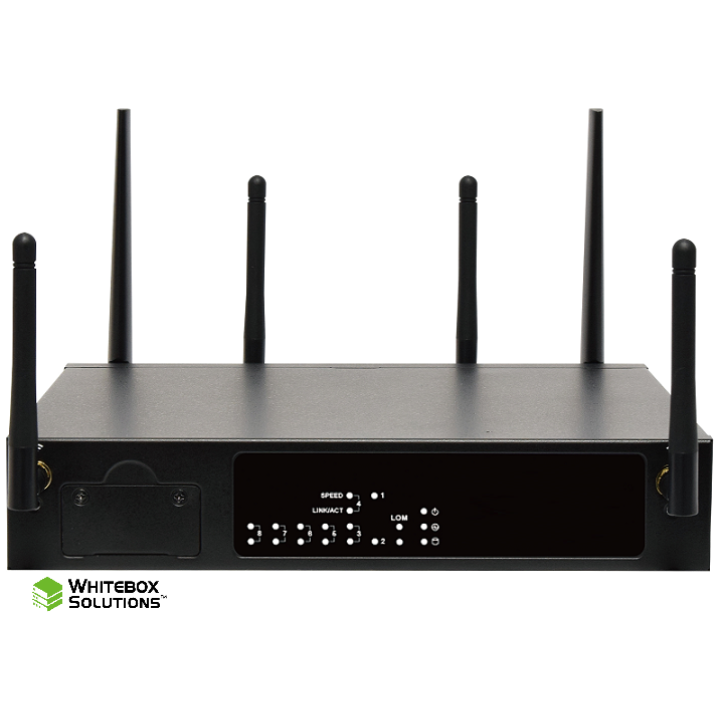

NCA-1515/L-1515 - Versa FlexVNF

Key features
  • 1. Intel® Atom® C3000 (Denverton)
  • 2. Max. 4x GbE RJ45 w/ 1 Pair of Gen3 Bypass, 2x GbE SFP w/ LED & 2x GbE RJ45 (See SKU)
  • 3. 2x 260-pin SODIMM (by SKU), DDR4 2400/2133/1866MHz ECC SODIMM, Max. 32GB
  • 4. 1x RJ45 Console, 2x USB 2.0, 1x Onboard EMMC 8G, 2x Nano SIM for M.2
  • 5. 2x Mini-PCIe (PCIe / USB 2.0), 2x M.2 2242 B Key (USB 3.0)
See more
Product description

Whitebox Appliance for vCPE, uCPE, SD-WAN, Edge Security, Intel Denverton C3000 x86 platform, Versa certified V2xx platform with Versa FlexVNF

See more
Overview
Device type
Modem
Network technology
LTE with GSM/UMTS
LTE category support
Cat 6
Hardware
Antenna

External

Battery

N/A

Display resolution

N/A

Ethernet ports

8

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

2

Voltage supply

100-240Vac/50-60Hz/1.5A

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
E911
eUICC
Expansion card slots
Checked
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution and Non Verizon FoTA solution (combined)

FoTA Client Type

OMADM

Operating System

Linux


Developer Kit
Checked
Diagnostics
Security Level
None
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

23.1x20.0x4.4 in.

Weight

1.2 kg

Operating Temperature

40 °C

Storage Temperature

-20 °C

Relative Humidity

5% to 95% (non-condensing)


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz),

Band13 (700 MHz)
