Phoenix Contact Development and Manufacturing, Inc.

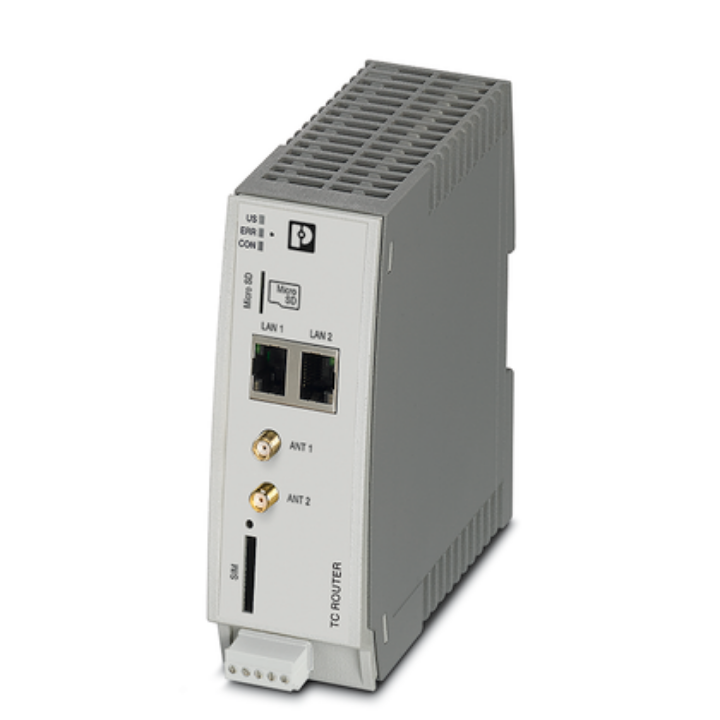

TC ROUTER 3002T-4G VZW
Contact manufacturer
SalesPhoenix Contact Development and Manufacturing, Inc.
TC ROUTER 3002T-4G VZW
Key features
- Stateful firewall inspection for cyber security concerns
- Switchable energy saving mode
- Extended temperature range for -40 °C to +70 °C
- Two switching inputs and one switching output for texting capabilities.
- Remote VPN start via contact closure or SMS
Product description
The TC Router is an industrial grade mobile router that enables high-performance high-speed data links via mobile networks. The TC Router includes an integrated VPN(Virtual Private Network) and firewall to allow for safe access and protection of data. The TC router is made for applications in extreme environments of -40 °C to 70 °C with switchable energy-savings mode for low power applications. This makes the TC router a great product for remote access and data collection applications.
Overview
- Device type
- Router
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
2
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
10 V DC to 30 V DC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- Checked
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice capable
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
Chassis
Dimensions
5.12"x1.77"x4.96" in.
Weight
—
Operating Temperature
-40 C
Storage Temperature
-40 C
Relative Humidity
10 % ... 95 % w/o condensation
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
1:1 NAT, Port Forwarding, Exposed Host
Routing Protocols
—
Security Protocol
3DES, AES-256 for VPN
VPN Support
IPSec, OpenVPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
Industries
Agricultural
Industrial / Manufacturing
Oil and Gas
Pharmaceutical
Transportation
Utilities
