Netgear

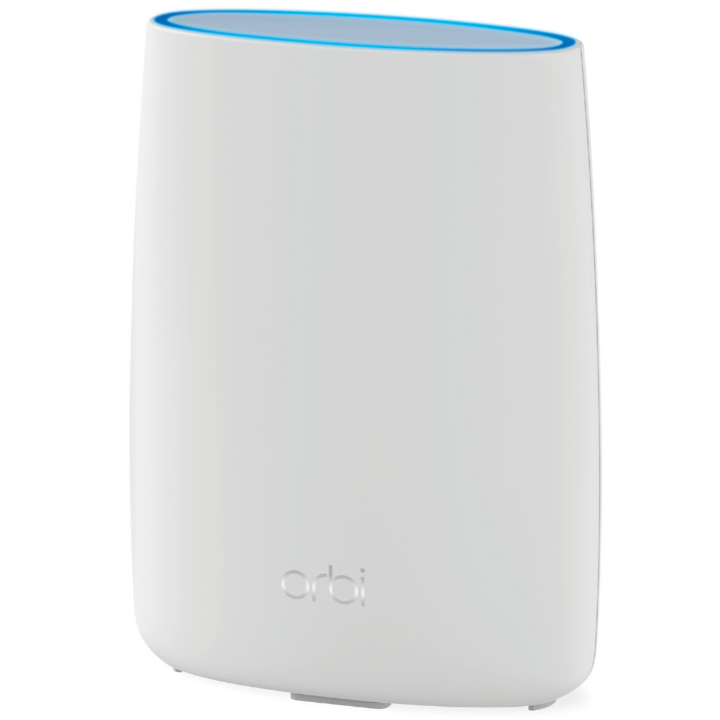

Orbi LTE Router LBR20
Netgear
Orbi LTE Router LBR20
Key features
- Expandable with additional Orbi Satellite
- Voice Control with Amazon Alexia and Google Assistant
- Smart Parental Control (Circle)
- Comprehensive anti-virus & data theft protection (Armor)
Product description
The Orbi™ 4G LTE Whole Home WiFi Router delivers up to 2.2Gbps high performance WiFi on 4G LTE networks. It has a sleek, modern design with high gain internal antennas for up to 2,000 sq ft of coverage. The Orbi™ 4G LTE WiFi Router with integrated cellular modem is compatible with select Orbi AC Satellites to create a mesh WiFi system, supporting seamless 4K streaming and gaming everywhere in your home.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 18
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
2
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
12V (device comes with AC power adaptor)
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- Checked
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
6.7x3.1x8.9 in.
Weight
—
Operating Temperature
0 °C to 40 °C
Storage Temperature
-20 °C to 70 °C
Relative Humidity
5-95%RH
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
RFC 3022, 4787, 5382; Support up to 64K concurrent dynamic NAT sessions
Routing Protocols
IPv4/v6 basic routing; Static routing; Dynamic routing RIPv1, RIPv2B/M
Security Protocol
Standards-based WiFi Security (802.11i, 128-bit AES encryption with PSK), WPA-PSK [TKIP] + WPA2-PSK [AES], Netgear Armor protection
VPN Support
Use OpenVPN (http://openvpn.net/) as VPN Server. OpenVPN is an SSL/TLS-based protocol and its advantages are portability, ease of configuration and compatibility with NAT and dynamic addresses
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
