ORing

IMG-4312D+-D4G

Contact manufacturer
Sales
Address

3F., No.542-2, Zhongzheng Rd., Sindian District, New Taipei City 23148, Taiwan (R.O.C.)

Phone

+886-2-2218-1066

ORing

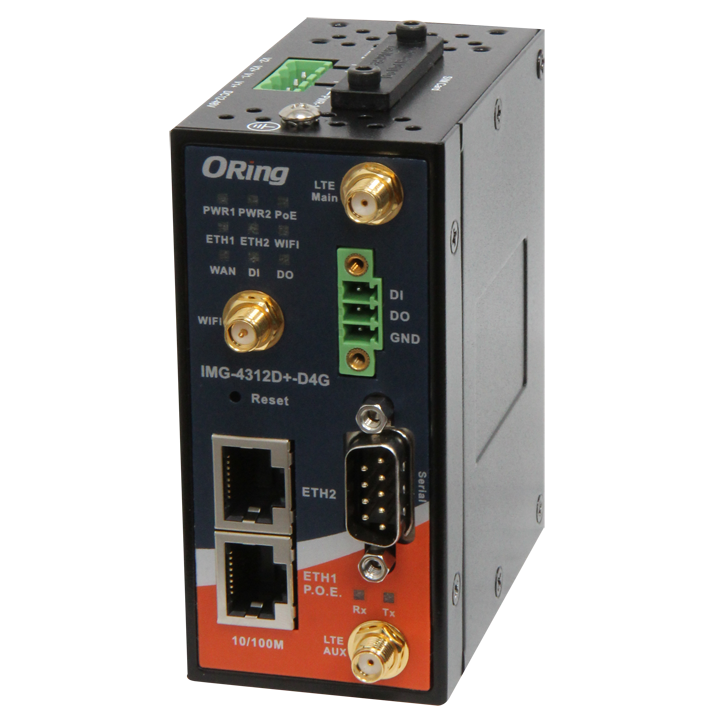

IMG-4312D+-D4G

Key features
  • Rugged IP-30 casing design
  • Redundant 12~48VDC power input in terminal block
  • PoE power input available with 1kV isolation
  • Support Modbus TCP/RTU industrial protocols
  • Support 2x 10/100Base-T(x) Ethernet ports
See more
Product description

IMG-4312D -D4G LTE cellular M2M Gateway is an innovative product for Cloud, Internet of Things and Industry 4.0 applications. It is a perfect choice for remote secured data collection from the factory floor (PLCs, machines, networking devices) and environmental sensors (temperature, humidity, noise, pollution, vibration etc.) as well as for serving control commands coming from Cloud Platforms for changing end-devices status.

See more
Overview
Device type
Router
Network technology
LTE Only
LTE category support
Cat 4
Hardware
Antenna

Battery

None

Display resolution

None

Ethernet ports

2

SIM type

Standard/Industrial Mini SIM (2FF)

Compatible 2FF SIM SKUs:



For CAT M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MTC-2FF-HD-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MTC-2FF-HD-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-2FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I



For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK2FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • BULK2FF-HD-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK2FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

12-48VDC

Other features
Accelerometer
Z-Wave
Audio
Battery safety
Bluetooth
Camera
Dual SIM
E911
eUICC
Expansion card slots
GNSS
GPS

Keyboard
Magnetic card reader
Printer
RJ-11
Scanning technology
Serial
Checked
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

OMADM

Operating System

Linux


Developer Kit
Diagnostics
Security Level
None
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Mobile Private Network
Checked
Fixed Wireless Access (FWA)
Checked
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
Private Wireless Network (On Site)
Chassis
Dimensions

3.17x1.77x3.74 in.

Weight

0.88 lbs

Operating Temperature

Storage Temperature

Relative Humidity

5% to 95%


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
Checked
UMTS
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

Contact
Technical support
Address
3F., No.542-2, Zhongzheng Rd., Sindian District, New Taipei City 23148, Taiwan (R.O.C.)
Phone

+886-2-2218-1066

Email

fae@oringnet.com

Industries

Distribution

Industrial / Manufacturing

Transportation
