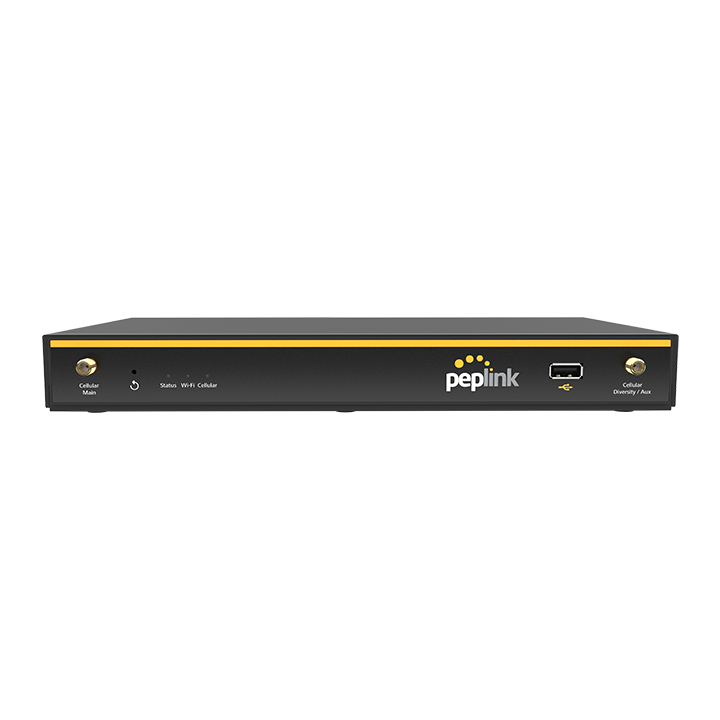

Peplink
Balance 20X
Peplink
Balance 20X
Key features
- 1x embedded LTE cellular modem (Downlink/Uplink: CAT-4: 150Mbps/50Mbps)
- With Flex Module Mini, which enable more cellular modem
- Simultaneous dual-band Wi-Fi 5 wave 2
- FlexModule
- Remote Central Management with InControl 2
Product description
The Balance 20X is a single cellular router for small businesses, branch office and retail location.The Balance 20X equipped with FlexModule Mini slot accepts all kinds of WAN technology, making it always ready for upgrades in the coming future.
Overview
- Device type
- Router
- Network technology
- LTE with GSM/UMTS
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
NA
Display resolution
NA
Ethernet ports
5
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
10V - 30V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- Checked
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
6.3x10.3x1.3 in.
Weight
1.74 lbs
Operating Temperature
14 °F to 113 °F
Storage Temperature
14 °F to 113 °F
Relative Humidity
15-95% Non Condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
One-to-one, one-to-many
Routing Protocols
RIP OSPF BGP
Security Protocol
Yes
VPN Support
PepVPN, IPSec, L2TP
Numbershare
N - no Numbershare
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band14 (700 MHz)
