MADIC ITALIA S.p.A.
ALIO PRO
Key features
- All in One unattended payment device
- outdoor / indoor usage
- EMV Contact, Contactless, Magstripe acceptance tecnologies
- Connectivity Ethernet, 4G Cat 1 on optional module
- TrustZone for Security
Product description

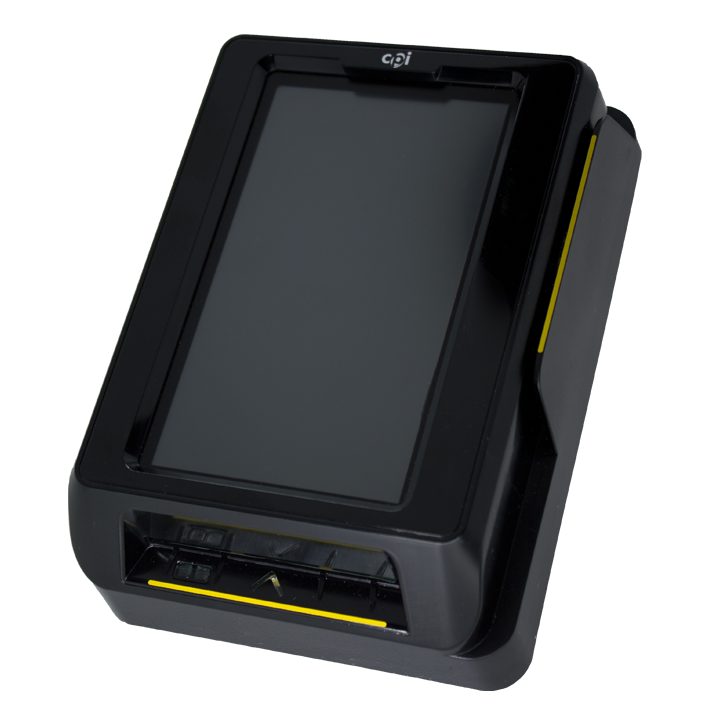

ALIO PRO is a compact, all-in-one payment system for unattended indoor and outdoor sites, able to satisfy sales of assets or services in kiosk and vending machines.
Overview
- Device type
- Point of Sale / Vending
- Network technology
- LTE Only
- LTE category support
- Cat 1
Hardware
Antenna
—
Battery
Battery backup primary lithium
Display resolution
480x272
Ethernet ports
1
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
2
Voltage supply
DC from 9V to 42V 1500mA
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- Checked
- Magnetic card reader
- Checked
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- Checked
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
4x9,8x13,4 in.
Weight
0,78 lbs
Operating Temperature
-20 °C to +70 °C
Storage Temperature
-30 °C to +80 °C
Relative Humidity
95% Not condensing
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
PPP
Security Protocol
TLS
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
