RAD Data Communications
SF-1v
Contact manufacturer
SalesAddress
900 Corporate Drive, Mahwah NJ 07430, USA
Phone
800-444-7234 or 201-529-1100 Option 1
RAD Data Communications
SF-1v
Key features
- • Hosting of third-party software using container technology
- • Multiservice support: GbE copper and fiber, serial, Power over Ethernet (PoE)
- • Single or dual cellular mode, dual SIM
- • Dynamic routing and secure VPN
- • Full cyber security suite
Product description

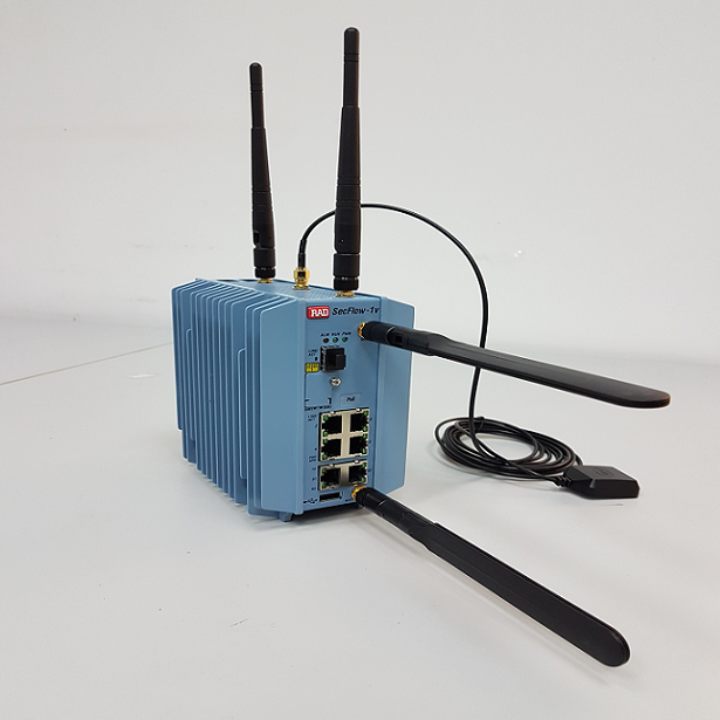

SecFlow®1v is an industrial IoT gateway, a ruggedized Ethernet product, hosting third-party software, besides its communication capabilities. It features 4 GbE Copper ports and 1 GbE SFP port, 2 serial RS-232 ports or 1 RS-232 and 1 RS-485/2W port, PoE, and a cellular modem with two SIM cards for maximum link resiliency. It supports third-party applications using Linux containers for quick introduction of new capabilities for Industrial IoT solutions.
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
5
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12 V : 11-30 VDC , 48 V : 44-57 VDC (Dual Power inlet), WDC : 20-60 VDC (Dual Power inlet)
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable
- —
- VoWiFi
- —
- WiFi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
5.9x3.25x6.19 in.
Weight
3.1 lbs
Operating Temperature
75 °C to °C
Storage Temperature
85 °C
Relative Humidity
90%
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Static & Dynamic , NAPT
Routing Protocols
BGP, OSPF, RIP, STATIC
Security Protocol
IPSEC, TLS, SSH
VPN Support
YES . IPSEC, OPEN VPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Contact
Website
Technical support
Address
Phone
800-444-7234 or 201-529-1100 Option 3
Industries
Agricultural
Construction
Distribution
Industrial / Manufacturing
Oil and Gas
Professional Services
Public Safety
Real Estate
Residential / Consumer
Retail
Transportation
Utilities
