Cypress Solutions Inc.

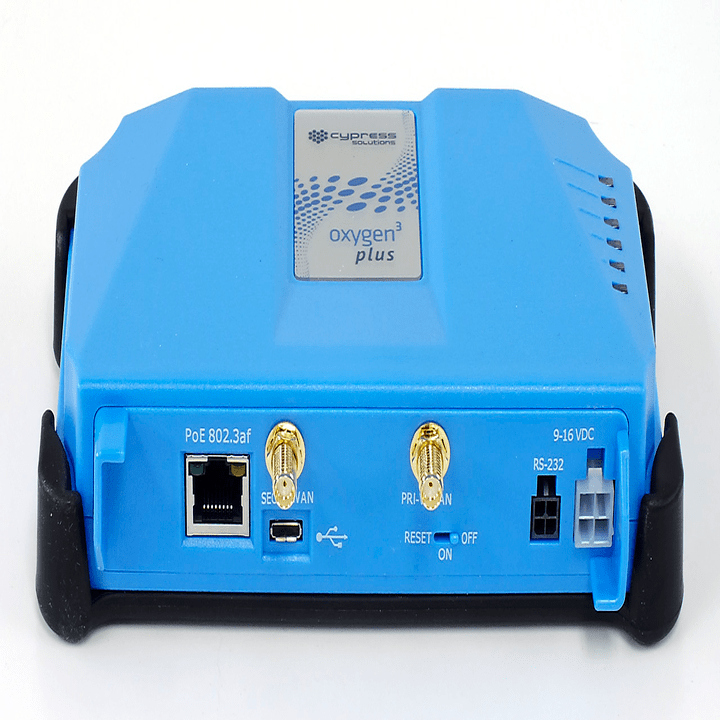

Oxygen-3Plus
Contact manufacturer
SalesCypress Solutions Inc.
Oxygen-3Plus
Key features
- Advanced business features capable of integrating into sophisticated networking environm.
- Primary and backup connectivity for branch networking
- Highly flexible device with fast throughput: provides higher rate of success.
- Simplified installation through industry standard PoE 802.3af.
- Minimize disruptions during power outages with built-in battery.Up to 7hrs of battery life
Product description
Ruggedized LTE device for primary and backup fixed location applications
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
Hardware
Antenna
—
Battery
7.4V
Display resolution
—
Ethernet ports
1
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
12V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- Checked
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- —
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- Checked
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
6.81x4.05x1.65 in.
Weight
—
Operating Temperature
0-40 °C to °C
Storage Temperature
20-40 °C
Relative Humidity
95% RH operational test
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
Yes
Routing Protocols
—
Security Protocol
Radius
VPN Support
IPSec / ISAKMP
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
