NimbeLink, a wholly owned subsidiary of Airgain, Inc.

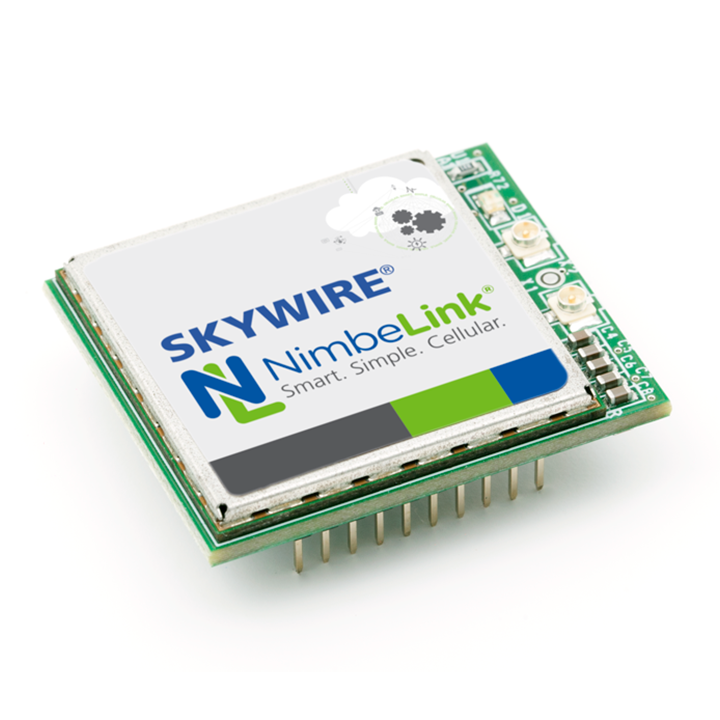

NL-SW-LTE-QBG95
Contact manufacturer
SalesNimbeLink, a wholly owned subsidiary of Airgain, Inc.
NL-SW-LTE-QBG95
Key features
- Skywire Standard Interface
- Flexible antenna options
- USB & UART serial interfaces
- Optimized for Low Power Wireless Communication
- Supports Global LTE-M (Cat M1), NB1, and NB2 with GPRS Fallback
Product description
This new Skywire modem offers LTE-M (CAT M1) and NB-IoT (NB1, NB2) connectivity for global applications with fallback to 2G, at lower power than the previous NL-SW-LTE-QBG96. It utilizes the Qualcomm 9205 chipset and Quectel BG95-M3 module. The modem also includes an integrated GPS/GNSS radio. The NL-SW-LTE-QBG95 is compatible with most of the world’s LTE-M and NB-IoT networks.
Overview
- Device type
- Modem
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
—
Display resolution
—
Ethernet ports
0
SIM type
Industrial Soldered SIM (MFF2 Embedded)
Learn More... M2M/IoT SIM SKU and Procurement Information
Compatible MFF2 SIM SKUs:
For CAT-M1 Devices:
- M2MTC-MFF2-A
- M2MTC-MFF2-D
- M2MSIM-HD-D
- M2MTC-MFF2-S
- M2MTC-MFF2-I
For Non CAT-M1(Cat 1, Cat 2, Cat 3, Cat 4,and above) Devices:
- MFF2-GT-A
- MFF2-AUTO-GT-A
- MFF2-GD-D
- MFF2-AUTO-GD-D
- M2MSIM-HDI-D
- MFF2-ST-S
- MFF2-AUTO-ST-S
- MFF2-ID-I
USB ports
1
Voltage supply
3.4V- 4.3V
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Bootstrap Profile Support
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- Checked
- Smart card reader
- —
- Voice capable Note: Please refer to the Software section for more details
- —
- VoWiFi
- —
- WiFi
- —
- Zigbee
- —
Software
Data Only
—
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- Checked
- Diagnostics
- —
- EMS
- —
- Fixed Wireless Access (FWA)
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- MMS
- —
- Mobile Private Network
- Checked
- Multi-APN
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Persistent Prefix IPv6
- —
- Private Wireless Network (On Site)
- —
- Remote Management
- —
- Security Level
- None
- SMS Capability
- Checked
- Split Data Routing (aka Dual APN)
- —
- WEA (Wireless Emergency Alert)
- —
Chassis
Dimensions
2.9x3.3x1.1 in.
Weight
lbs
Operating Temperature
-40 °C to +85 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
20% - 90% Non-condensing
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
