AMIT Wireless
MDG100
Contact manufacturer
SalesAddress
1-2F, No. 28, Ln. 31, Sec. 1, Huandong Rd., Sinshih Dist., Tainan City, Taiwan (R.O.C)
Phone
+886-6-5058026 ext. 708
AMIT Wireless
MDG100
Key features
- Industrial IoT LTE modem
- Web-based configuration
- Real-time GPS location data
- Intelligent network monitoring
- Standard miniPCIe form factor
Product description

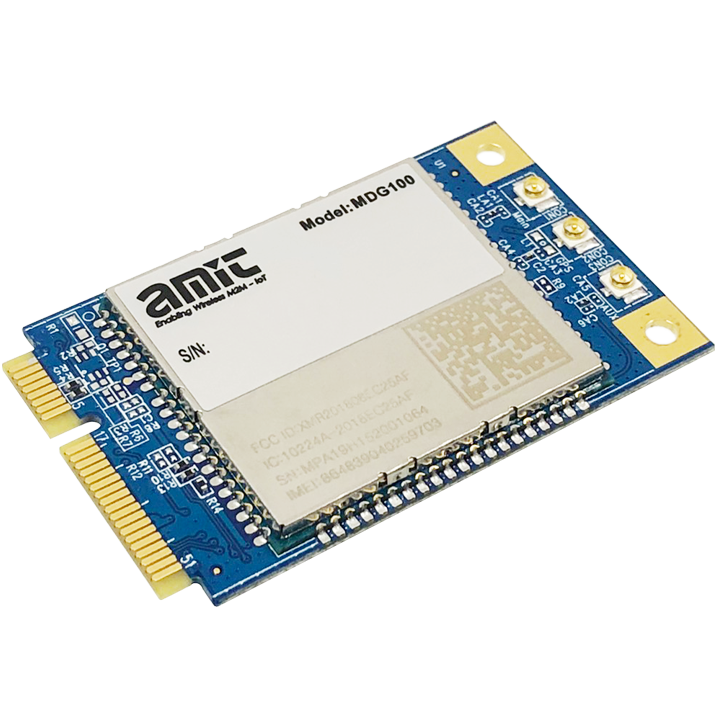

AMIT MDG100 is a USB LTE modem in a standard miniPCIe form factor. It’s a Plug&Play end device that can provide LTE connectivity right after a SIM card is inserted into its nano-SIM slot. With its intelligent connection monitoring mechanism, it can provide more reliable LTE connection for mission-critical applications. MDG100 equips with an internal web GUI for configuration and connection status monitoring. The GPS feature can also help collect the location data at real time.
Overview
- Device type
- Modem
- Network technology
- LTE Only
- LTE category support
- Cat 4
Hardware
Antenna
—
Battery
n/a
Display resolution
n/a
Ethernet ports
0
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
DC 3.3V (Power Input)
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Operating System
Linux
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- —
- Fixed Wireless Access (FWA)
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- LTE Licensed
Chassis
Dimensions
2x1.22x0.24 in.
Weight
0.42 oz
Operating Temperature
-40 °C to +80 °C
Storage Temperature
-40 °C to +85 °C
Relative Humidity
10%~95% (non-condensing)
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
