Volansys Technologies

CENTAURI 200

Key features
  • Gateway Apps: OTA, Real-time alerts, Rule engine, Scene, Multiple device management
  • Connectivity: Z-Wave, Thread, Zigbee, BLE Mesh, Sub-GHz, Cloud: Ethernet, Wi-FI, LTE
  • Operating System: Yocto Linux, CENTAURI Framework, OpenWRT, Docker
  • Android and iOS Mobile App, Control and monitor 200+ devices and sensors per Gateway
  • IOT Gateway Interfaces: USB 2.0 connectivity, RS485/RS232, 2x Ethernet, Switches
See more
Product description

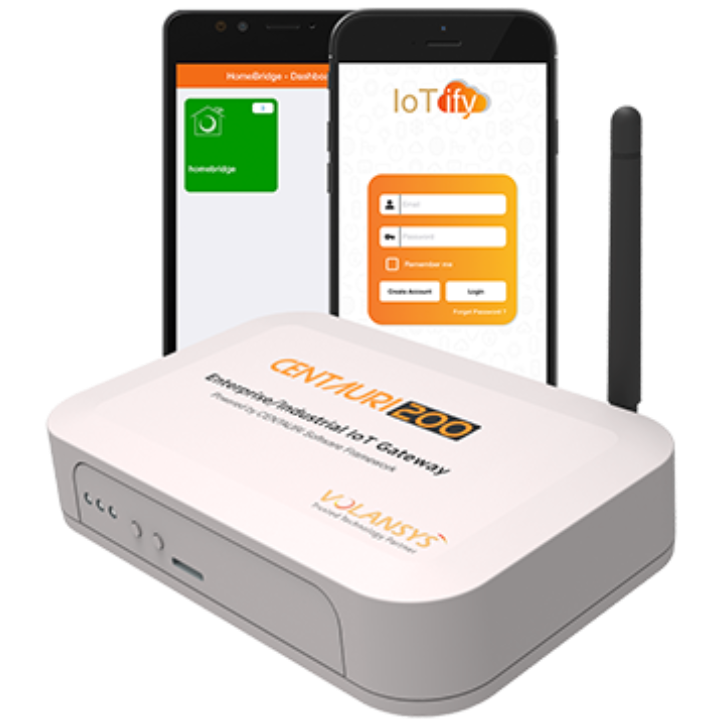

CENTAURI 200 IoT Gateway platform is specifically crafted to satisfy all the needs of the Enterprise/Industrial IoT Gateway Solution. OEMs can build Zigbee gateway, Z-Wave gateway, BLE gateway and Thread gateway-based solution on the platform with any two radios supported at a time.

See more
Overview
Device type
Remote Monitoring and Control
Network technology
LTE Only
LTE category support
Cat 1
Hardware
Antenna

—

Battery

RTC backup coin cell 3V CR1220

Display resolution

NA

Ethernet ports

2

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • BULK4FF-HD-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

1

Voltage supply

9 to 27 V DC

Other features
Accelerometer
—
Z-Wave
Checked
Audio
—
Battery safety
—
Bluetooth
Checked
Camera
—
Dual SIM
—
E911
—
eUICC
—
Expansion card slots
—
GNSS
Checked
GPS
Checked

Keyboard
—
Magnetic card reader
—
Printer
—
RJ-11
—
Scanning technology
—
Serial
Checked
Smart card reader
—
Voice transmission capable
—
Wifi
Checked
Zigbee
Checked
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

OMADM

Operating System

Linux


Developer Kit
Checked
Diagnostics
—
Security Level
None
EMS
—
MMS
—
Remote Management
Checked
SMS Capability
—
WEA (Wireless Emergency Alert)
—
Persistent Prefix IPv6
—
Mobile Private Network
—
Fixed Wireless Access (FWA)
—
Split Data Routing (aka Dual APN)
—
Multi-APN
—
Global Capable
—
Private Wireless Network (On Site)
LTE Licensed
Chassis
Dimensions

15x10x3 cm.

Weight

0.67 lbs

Operating Temperature

—

Storage Temperature

60 °C

Relative Humidity

—


Rain & dust resistance
—
Vehicle Mounting
—
Network
NAT

—

Routing Protocols

—

Security Protocol

—

VPN Support

—

Numbershare

N - no Numbershare


Fax capable
—
Firewall
—
UMTS
—
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

Contact
Website

volansys.com

Technical support
Address
Volansys Technologies, Block A-7th Floor, Safal Profitaire, Corporate Road, Prahaladnagar, Ahmedabad-380 015, Gujarat
Phone

+91 79 4004 1994

Email

centauri.support@volansys.com

Industries

Agricultural

Hospitality

Industrial / Manufacturing

Real Estate

Residential / Consumer

Retail

Transportation

Utilities
