Embedded Planet

Agora Cell

Key features
  • IoT Modem, Onboard Sensor Suite, ARM Pelion Enabled with MBed, Battery Powered,
See more
Product description

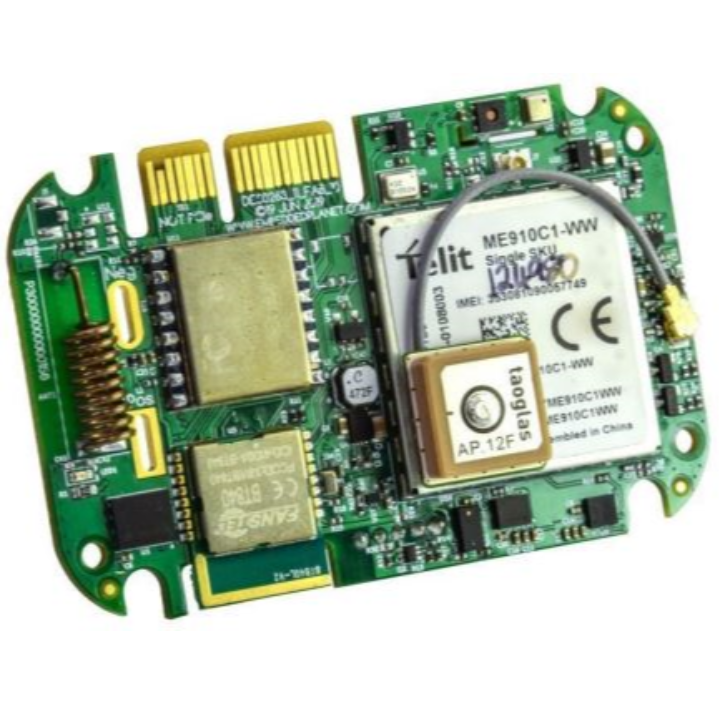

The Agora Cell solution is a flexible multi-sensor module designed to be used as a module for OEM to be added to a system or as a complete solution for monitoring. Cellular connectivity allows the epSensor to used in locations without Ethernet or Wi-Fi access. Sensors allow for air quality monitoring, temperature/humidity, motion detection, audio detection, light sensing, accelerometer and time of flight.

See more
Overview
Device type
Modem
Network technology
LTE with GSM/UMTS
LTE category support
Cat M1
Hardware
Antenna

External

Battery

Display resolution

Ethernet ports

0

SIM type

Standard Nano SIM (4FF)

Compatible 4FF SIM SKUs:

For CAT-M1 Devices:

  • M2MTC-TRI1-NORUG-A
  • M2MSIM-HD-A
  • M2MTC-TRI1-NORUG-D
  • M2MSIM-HD-D
  • M2MTC-TRI1-NORUG-S
  • M2MTC-4FF-HD-S
  • M2MSIM-I
  • M2MTC-HD-I

For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:

  • M2MTRI-NONRUG-GT-A
  • M2MTRI-NONRUG-GD-D
  • M2MSIM-HDI-D
  • M2MTRI-NONRUG-ST-S
  • BULK4FF-HD-ST-S
  • M2MSIM-HD-I
  • M2MSIM-NR-I

USB ports

0

Voltage supply

Other features
Accelerometer
Checked
Z-Wave
Audio
Battery safety
Bluetooth
Checked
Camera
E911
eUICC
Expansion card slots
GNSS
Checked
GPS
Checked

Keyboard
Magnetic card reader
Printer
RJ11
Scanning technology
Serial
Smart card reader
Voice transmission capable
Wifi
Zigbee
Software
FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Operating System

Other


Developer Kit
Diagnostics
Security Level
None
EMS
MMS
Remote Management
SMS Capability
WEA (Wireless Emergency Alert)
Persistent Prefix IPv6
Wireless Private Network
Checked
Fixed Wireless Access (FWA)
Split Data Routing (aka Dual APN)
Multi-APN
Global Capable
On Site LTE/5G
Chassis
Dimensions

Weight

Operating Temperature

Storage Temperature

Relative Humidity


Rain & dust resistance
Vehicle Mounting
Network
NAT

Routing Protocols

Security Protocol

VPN Support

Numbershare

N - no Numbershare


Fax capable
Firewall
UMTS
LTE

Band4 (1700 MHz)

Band13 (700 MHz)
