Atomation
Stand Alone Atom
Contact manufacturer
SalesAddress
190 Carondelet Plaza #1130, Saint Louis, MO 63105
Phone
(314) 279-0150
Atomation
Stand Alone Atom
Key features
- IP68/Nema 6
- Self-calibrating
- Self contained edge computing device
- Remote IoT sensor configuration
- Battery powered - 5 yr life
Product description

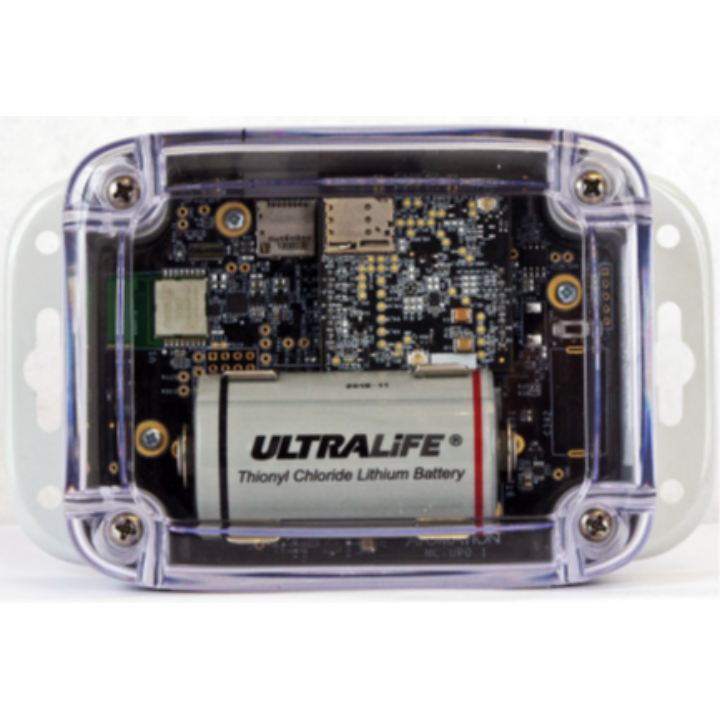

Quickly and affordably monitor equipment with Stand Alone Atoms from Atomation. Atoms combine sensing, computing, and cellular communication to identify issues by gathering temperature, vibration, impact, tilt and EMF data and independently determining whether the situation is normal or if a notification needs to be sent. Wireless and battery operated, Atoms are simple to install, immediately operational and provide intelligent alerts for problems across your operation.
Overview
- Device type
- Remote Monitoring and Control
- Network technology
- LTE Only
- LTE category support
- Cat M1
Hardware
Antenna
—
Battery
3.6V Non-Replaceable Battery - 5 yr life
Display resolution
N/A
Ethernet ports
0
SIM type
Standard Nano SIM (4FF)
Compatible 4FF SIM SKUs:
For CAT-M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-4FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK4FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK4FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
0
Voltage supply
3.3V
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- Checked
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- —
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
5.75x3.42x2.25 in.
Weight
.8 lbs
Operating Temperature
-40 °F to 180 °F
Storage Temperature
50 °F to 100 °F
Relative Humidity
—
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
N/A
Routing Protocols
N/A
Security Protocol
—
VPN Support
N/A
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band12 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Contact
Website
Technical support
Address
Phone
(314) 279-0150
Industries
Agricultural
Construction
Government
Healthcare
Hospitality
Industrial / Manufacturing
Oil and Gas
Pharmaceutical
Public Safety
Real Estate
Transportation
Utilities
