Ericsson Cradlepoint

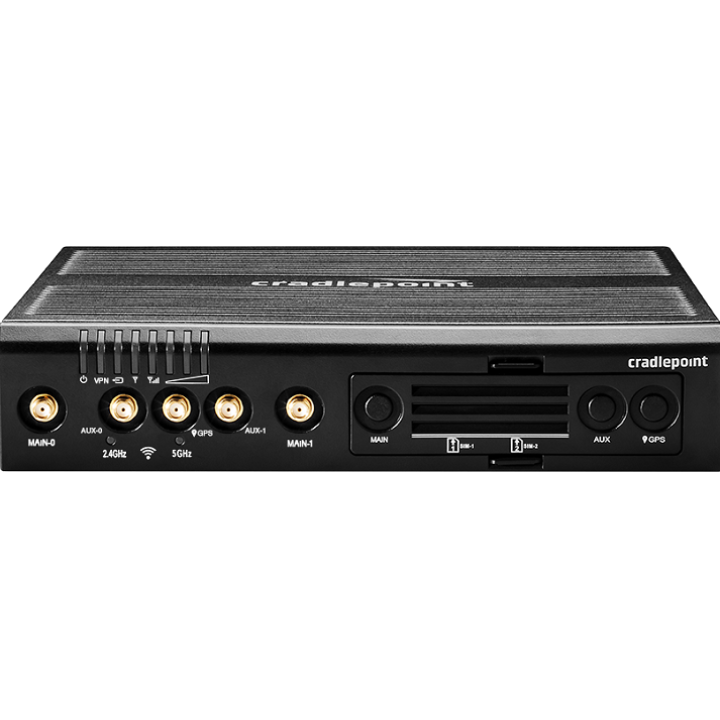

AER2200-1200M-B
Contact manufacturer
SalesEricsson Cradlepoint
AER2200-1200M-B
Key features
- Internal Gigagit-class 5-CA LTE modem, with secure SIM card access and dual SIM slots
- Includes dual-band dual-concurrent 4x4 2.4/5 GHz 802.11 a/b/g/n/ac wave 2 WiFi; 2 x 2 MIMO
- Ten 10/100/1000 Ethernet ports (LAN/WAN configurable) and an active GPS antenna port
- Up to 4 ports of PoE support at 802.3at power (up to120 Watts with high power AC supply)
Product description
The Cradlepoint AER2200 is an advanced edge routing solution that combines cloud management, advanced security (UTM), industry leading 4G LTE failover, high-performance WiFi, and dual modem capabilities. It supports 10 ports of GigE (4 PoE enabled), and 4x4 dual-band dual-concurrent WiFi with Wave 2 ac support. The router features an 1200 Mbps LTE module* with support for Verizon LTE Bands with 5 carrier aggregation, 4x4 MIMO, 256 QAM, Ethernet support for wired networks, and WiFi as WAN.
Overview
- Device type
- Router
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 18
Hardware
Antenna
—
Battery
N/A
Display resolution
N/A
Ethernet ports
—
Dual SIM type
SIM1 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
SIM2 - Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
54 VDC
Other features
- Accelerometer
- —
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- Checked
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- Checked
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Operating System
Other
- Developer Kit
- —
- Diagnostics
- —
- Security Level
- None
- EMS
- —
- MMS
- —
- Remote Management
- Checked
- SMS Capability
- —
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Fixed Wireless Access (FWA)
- —
- Network Slicing
- —
- Split Data Routing (aka Dual APN)
- Checked
- Multi-APN
- —
- Global Capable
- —
- Global IoT Orchestration Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
LTE CBRS
Chassis
Dimensions
8.25x7.25x1.75 in.
Weight
3.3 lbs
Operating Temperature
0 °C to 50 °C
Storage Temperature
-30 °C to 70 °C
Relative Humidity
10% to 90% Non-Condensing
- Rain & dust resistance
- Checked
- Vehicle Mounting
- —
Network
NAT
YES
Routing Protocols
GRE, L2TP, NEMO, VRRP, STP, NHRP, OSPF, BGP, RIP, VTI, Split DNS, DNS Proxy, DNS, DHCP relay/client/server, SIP, IRC, VLAN support (802.1Q)
Security Protocol
IPSec, 802.1x (wired and wireless), TACACS+/RADIUS Authentication
VPN Support
IPSec, OpenVPN, CP Secure VPN
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- Checked
- UMTS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
