TELIT IOT SOLUTIONS INC.

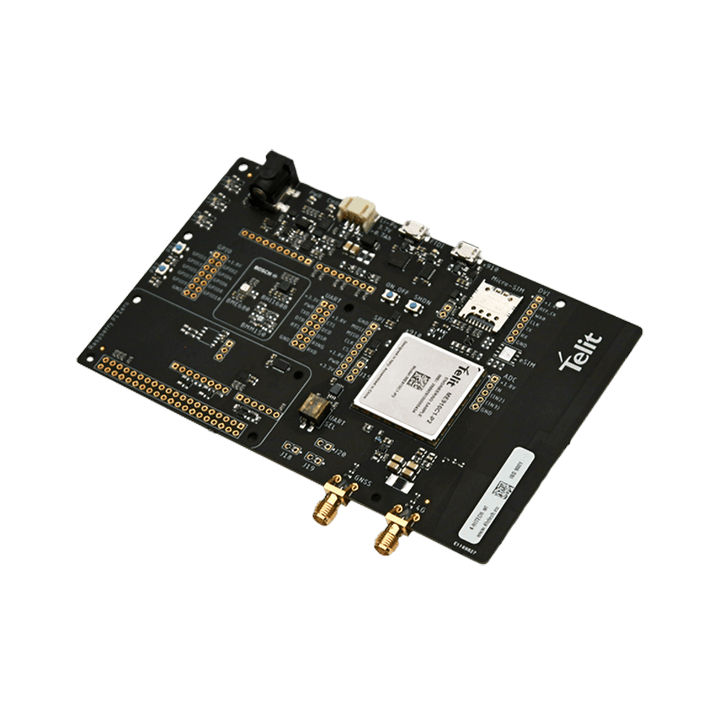

Telit Bravo IoT Evaluation Kit
Contact manufacturer
SalesAddress
5425 Page Rd, Suite 120, Durham, NC, 27703
Phone
+1 888 846 9773
TELIT IOT SOLUTIONS INC.
Telit Bravo IoT Evaluation Kit
Key features
- Powered either from a computer USB port, external power supply or Li-ion battery
- High-efficiency battery charger circuit*
- Built-in wideband cellular antenna
- SMA receptacle for external GNSS antenna with LNA supply
- High-performance, low-power and low-noise Bosch motion and environmental sensors
Product description
The next generation of Telit IoT evaluation kits, Bravo is compatible with the most common open-hardware platforms. The kit features Telit ME910C1-WW, one of Telit’s flagship modules with broad frequency band coverage and LTE-M support with 2G fallback. Bravo includes three Bosch Sensortec high-performance motion and environmental smart sensor chips to make
Bravo a complete IoT development platform.
Overview
- Device type
- Development Kit
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1 Link to Module Info
Hardware
Antenna
External
Battery
—
Display resolution
—
Ethernet ports
0
SIM type
Standard/Industrial Mini SIM (2FF)
Compatible 2FF SIM SKUs:
For CAT M1 Devices:
- M2MTC-TRI1-NORUG-A
- M2MTC-2FF-HD-A
- M2MSIM-HD-A
- M2MTC-TRI1-NORUG-D
- M2MTC-2FF-HD-D
- M2MSIM-HD-D
- M2MTC-TRI1-NORUG-S
- M2MTC-2FF-HD-S
- M2MSIM-I
- M2MTC-HD-I
For Non CAT-M1 (Cat 1, Cat 2, Cat 3, Cat 4, and above) Devices:
- M2MTRI-NONRUG-GT-A
- BULK2FF-HD-GT-A
- M2MTRI-NONRUG-GD-D
- BULK2FF-HD-GD-D
- M2MSIM-HDI-D
- M2MTRI-NONRUG-ST-S
- BULK2FF-HD-ST-S
- M2MSIM-HD-I
- M2MSIM-NR-I
USB ports
1
Voltage supply
3.7 V
Other features
- Accelerometer
- Checked
- Z-Wave
- —
- Audio
- —
- Battery safety
- —
- Bluetooth
- —
- Camera
- —
- Dual SIM
- —
- E911
- —
- eUICC
- —
- Expansion card slots
- —
- GNSS
- Checked
- GPS
- Checked
- Keyboard
- —
- Magnetic card reader
- —
- Printer
- —
- RJ-11
- —
- Scanning technology
- —
- Serial
- —
- Smart card reader
- —
- Voice transmission capable
- —
- Wifi
- —
- Zigbee
- —
Software
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Operating System
Other
- Developer Kit
- Checked
- Diagnostics
- Checked
- Security Level
-
Security Level 1
(Regular OD devices. Minimum security requirements mandated.) - EMS
- —
- MMS
- —
- Remote Management
- —
- SMS Capability
- Checked
- WEA (Wireless Emergency Alert)
- —
- Persistent Prefix IPv6
- —
- Mobile Private Network
- Checked
- Split Data Routing (aka Dual APN)
- —
- Multi-APN
- —
- Global Capable
- —
- Private Wireless Network (On Site)
- —
Chassis
Dimensions
—
Weight
—
Operating Temperature
—
Storage Temperature
—
Relative Humidity
—
- Rain & dust resistance
- —
- Vehicle Mounting
- —
Network
NAT
—
Routing Protocols
—
Security Protocol
—
VPN Support
—
Numbershare
N - no Numbershare
- Fax capable
- —
- Firewall
- —
- UMTS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band12 (700 MHz)
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
