TELIT IOT SOLUTIONS INC.
LE910C1-SV
Key features
- Embedded GNSS solution.
- Over-the-Air firmware update.
- Internet friendly with integrated TCP/IP and UDP/IP stacks.
- Easy to integrate with peripherals using USB 2.0 HS, UART and user definable GPIOs.
Product description

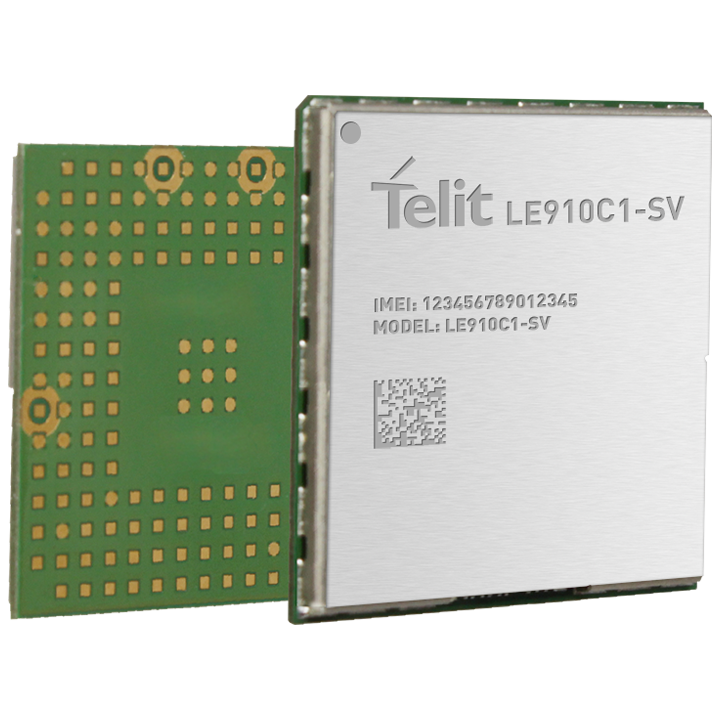

The LE910C1-SV industrial-grade LTE Category 1 module is compliant with 3GPP Release 10 and is available with optional quad-constellation GNSS capability. The LE910C1-SV compact, LGA-packaged module series is available in configurations supporting LTE only.
Overview
- Network technology
- LTE Only
- LTE category support
- Cat 1
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Standalone
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Software
FCC ID
RI7LE910C1SV
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
OMADM
Other features
- Voice capable
- Checked
- Native IM client
- Checked
- Battery safety
- Checked
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
2.00787x1.1811x0.125984 in.
Relative humidity
—
Stored temperature
-40 °C to +85 °C
Operating temperature
-40 °C to +85 °C
Weight
—
Voltage supply
3.3 - 4.2 VDC
Power consumption
—
