TELIT IOT SOLUTIONS INC.
LN920A6-NA
Contact manufacturer
SalesAddress
5425 Page Rd, Suite 120, Durham, NC, 27703
Phone
+1 888 846 9773
TELIT IOT SOLUTIONS INC.
LN920A6-NA
Key features
- M.2 (NGFF) High Speed LTE Data Card
- Cost-effective, no-compromise, scalable
- Telit AppZonesupport, allowing customers to develop own applications
- GPIOs to control external devices
- Dual-SIM, single standby support (DSSS) eliminates need for external SIM switch
Product description

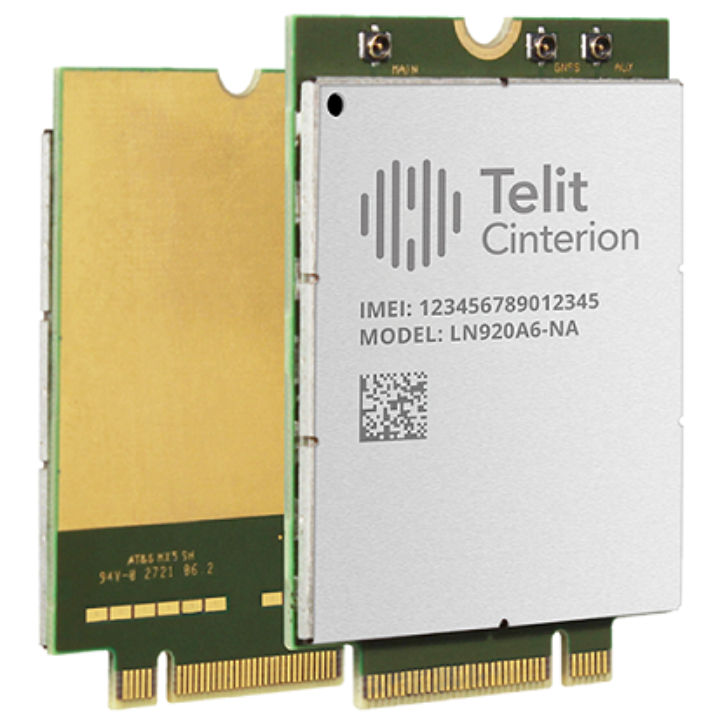

The LN920 M.2 data card is part of the family of Telit highspeed data cards. Designed in M.2 (NGFF) form factor, it is the natural evolution toward 5G technology. Compatible with 3GPP Release (Rel) 12.
The LN920A6-NA is idle for regional deployment (North America) requiring a cost effective modem, suitable for both high-performance industrial and consumer applications, including fixed wireless access, enterprise routers and gateways, indoor and outdoor CPE, and mobile computing.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
- Form factor
- M.2
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- —
- GPIO
- Checked
- Serial
- Checked
- GPS
- Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band7 (2600 MHz)
Band12 (700 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band41 (2500 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
RI7LN920NA
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- Checked
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
-
—
LTE Licensed - Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
1.1811x1.65354x0.0944882 in.
Relative humidity
N/A
Stored temperature
-40 °F to 85 °F
Operating temperature
-40 °F to 85 °F
Weight
0.25 lbs
Voltage supply
—
Power consumption
—
