Quectel Wireless Solutions Co., Ltd.

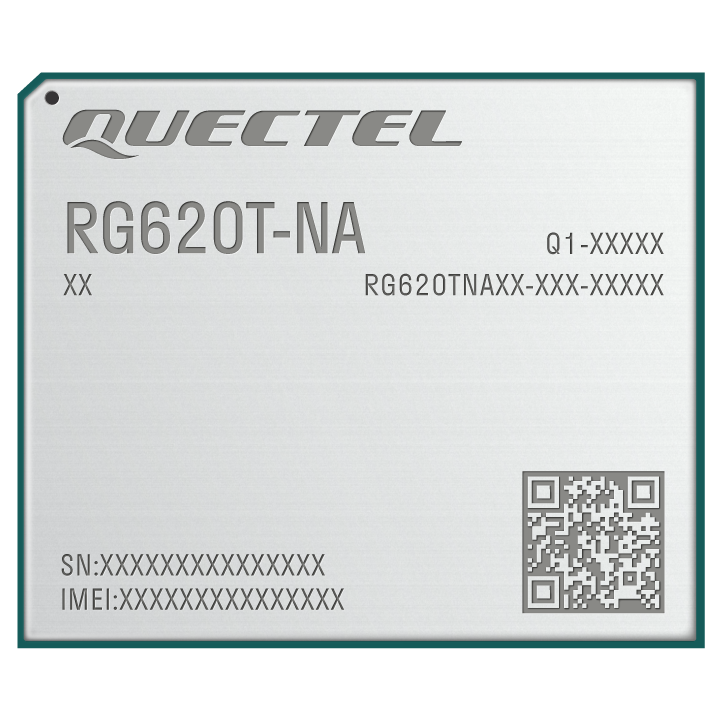

RG620T-NA
Key features
- Sub-6 GHz 5G module with LGA form factor
- 5G 4CA supported
- Multi-mode network coverage, compatible with 4G network (Cat 19)
- Both NSA and SA modes supported
Product description
Quectel RG620T-NA is a 5G Sub-6 GHz LGA modules optimized specially for IoT/ eMBB applications. Adopting the 3GPP Release 16 technology, the module supports the 5G modes of both NSA and SA.
Overview
- Network technology
- 5G NR SA + 5G NR NSA + LTE
- LTE category support
- Cat 19
- Form factor
- LGA
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- —
- GPIO
- —
- Serial
- —
- GPS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
SA FR1 (Sub6) n2
SA FR1 (Sub6) n5
SA FR1 (Sub6) n48
SA FR1 (Sub6) n66
SA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
Software
FCC ID
XMR2024RG620TNA
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- —
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE CBRS
5G Licensed
5G CBRS - Network Slicing
- Checked
- Mobile Private Network
- —
Chassis & power source
Dimensions
4.4x5.3x0.295 cm
Relative humidity
—
Stored temperature
-40 °F to 85 °F
Operating temperature
-30 °F to 70 °F
Weight
lbs
Voltage supply
—
Power consumption
—
