TELIT IOT SOLUTIONS INC.

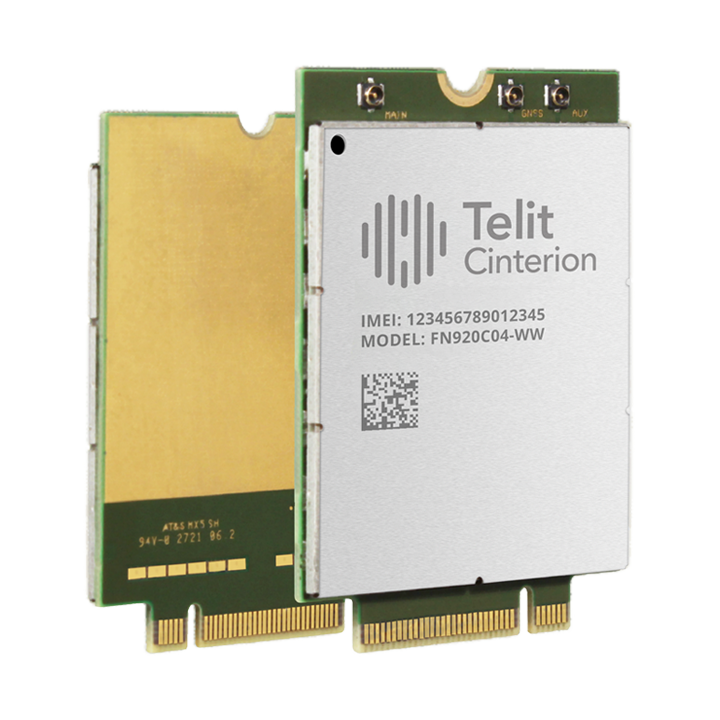

FN920C04-WW

Key features

M.2 Form factor
Integrated GNSS support GPS/BeiDou/GLONASS/Galileo
USB 2.0 HS/HSIC interface up to 480 Mbps
Pads for Rx diversity/MIMO antennas
Lines for Module-On and Reset

Product description

The FN920C04-WW enables 5G mid-speed connectivity relying on the latest 3GPP Release 17 RedCap technology. It levels up performance and efficiency compared to LTE, promising the highest level of flexibility by offering customers to move to a secure 5G future easily. The FN920C04-WW is industrial grade, rugged, suitable for global use, with enhanced uplink performance, power saving features, and with LTE Cat 4 fallback for best coverage.

Overview

Network technology: 5G NR SA RedCap + LTE
LTE category support: Cat 4
Form factor: M.2

Hardware & Network

Features

UDP

Checked

TCP

Checked

UART

—

GPIO

Checked

Serial

Checked

GPS

Checked

LTE

Band2 (1900 MHz)

Band4 (1700 MHz)

Band5 (850MHz)

Band13 (700 MHz)

Band48 (3500 MHz)

Band66 (1700 MHz)

5G

SA FR1 (Sub6) n2

SA FR1 (Sub6) n5

SA FR1 (Sub6) n66

Software

FCC ID

RI7FN920C04WW

FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

—

Other features

Voice capable: —
Native IM client: Checked
Battery safety: —
SMS Capability: Checked
Developer Kit: —
ALO (Airborne LTE Operations): —
Diagnostics: Checked
Global Capable: —
eUICC: —
Private Wireless Network (On Site): —
LTE Licensed
LTE CBRS
5G Licensed
5G CBRS
Global
Network Slicing: —
Mobile Private Network: Checked
