u-blox

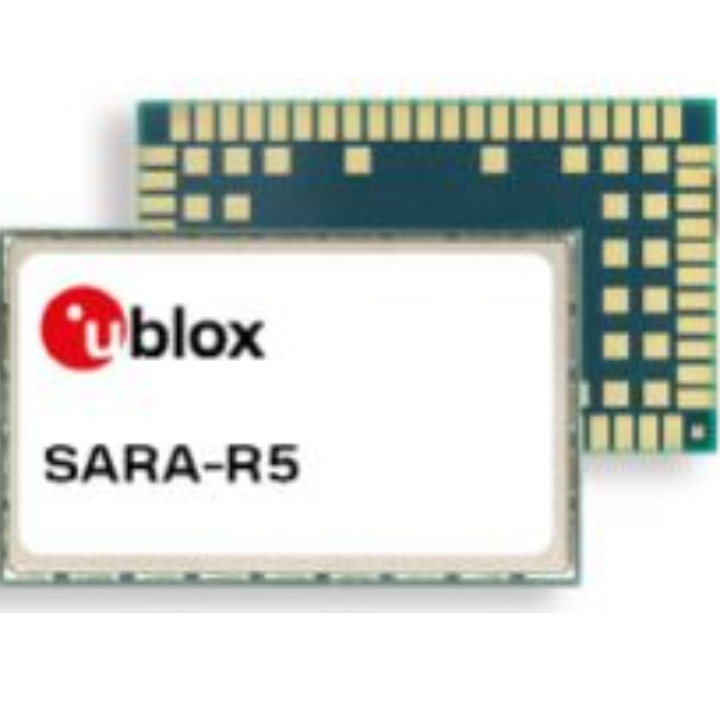

SARA-R520M10

Key features
  • Designed to last an IoT lifetime: 5G-ready with the u-blox UBX-R5 chipset
  • Optimized ultra-low power consumption
  • Critical firmware updates delivered and services enabled via uFOTA
  • Accurate and reliable positioning, always and everywhere, with u-blox M10 GNSS receiver
  • Built-in E2E security with hardware-based Root of Trust
See more
Product description

The SARA-R520M10 is based on u-blox's UBX-R5 cellular chipset and pre-integrated with the u-blox M10 GNSS receiver and separate GNSS antenna interface. The module supports a comprehensive set of 3GPP Rel. 14 features that are relevant for IoT applications, ie power consumption, coverage, data rate, mobility and positioning.

See more
Overview
Network technology
LTE Only
LTE category support
Cat M1
Form factor
Surface Mount/Soldered
Hardware & Network
Features
UDP
Checked
TCP
Checked
UART
Checked
GPIO
Checked
Serial
Checked
GPS
Checked
LTE

Band4 (1700 MHz)

Band13 (700 MHz)

Supported Global/Roaming Markets
Canada/Mexico
Europe
Asia
Puerto Rico/Latin America
Software
FCC ID

XPYUBX19KM01

FoTA For Baseband/Modem Software Update Capability

Verizon FoTA Solution (only)

FoTA Client Type

LWM2M

Other features
Voice capable
Native IM client
Battery safety
SMS Capability
Checked
Developer Kit
ALO (Airborne LTE Operations)
Diagnostics
Global Capable
Checked
eUICC
Private Wireless Network (On Site)
Network Slicing
Mobile Private Network
Chassis & power source
Dimensions

.16x.26x.022 in

Relative humidity

Stored temperature

-40 °F to 85 °F

Operating temperature

25 °F to °F

Weight

<0.10 lbs

Voltage supply

Power consumption

TBD
