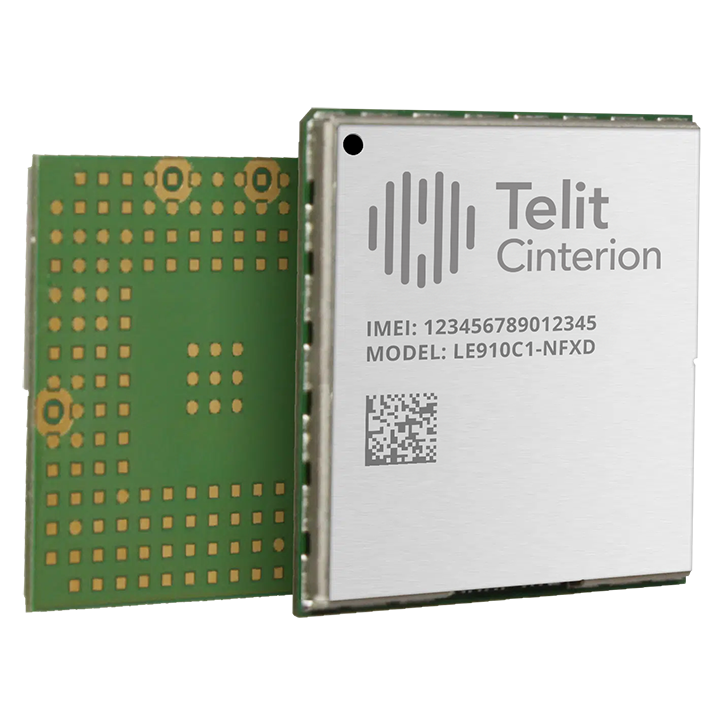

LE910C1-NFXD
Key features
- Embedded GNSS solution.
- Over-the-Air firmware update.
- Internet friendly with integrated TCP/IP and UDP/IP stacks.
- Best-in class 3GPP Rel 10 platform
- Easy to integrate with peripherals using USB 2.0 HS, UART and user definable GPIOs
Product description
Based on ThreadX, supporting extensive suite of Value Added Services from IoT Connectivity including Module Management and others which make the management of IoT deployments under mobile networks effective, enhancing profitability and reliability. Portal-ready which means that the AT command library includes a set of high-level commands designed exclusively for quick and hassle-free on-boarding of the device to portal and to back-end systems and servers.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 1
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band14 (700 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
RI7LE910CXNF
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- Checked
- Battery safety
- Checked
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed - Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
1.110236x1.110236x0.0866142 in
Relative humidity
—
Stored temperature
-40 °C to 85 °C
Operating temperature
-40 °C to 85 °C
Weight
lbs
Voltage supply
3.3 - 4.2 VDC
Power consumption
—
