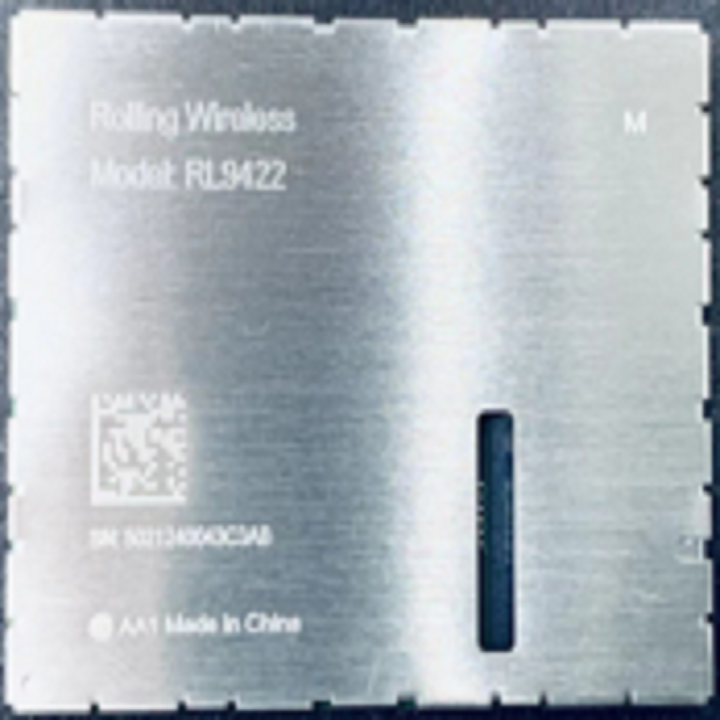

Rolling Wireless
RL9422
Key features
- Automotive-grade manufacturing (TS-16949 certified). Automotive quality processes (PPAP, 8D, PCN, FA, …).
- Multicore Architecture: ARM Cortex-A7 (1.2GHz) application core dedicated to customer.
- Advanced voice quality with AEC/NR according VDA.
- Management Service via AirVantage® M2M Cloud.
- GNSS (GPS, Glonass, Galileo, BeiDou, QZSS)
Product description
The RL9422 CAT6 module is designed for the automotive industry. The RL9422 supports LTE, WCDMA, and GSM air interface standards. Global Navigation Satellite System (GNSS) capabilities including GPS, GLONASS, Galileo, BeiDou, and QZSS.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 6
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- Checked
- GPIO
- Checked
- Serial
- —
- GPS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band12 (700 MHz)
- GPRS
-
850 MHz
- GSM
-
850 MHz
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
2AX2URL9422
FoTA For Baseband/Modem Software Update Capability
Non Verizon FoTA Solution (only)
FoTA Client Type
OMADM
Other features
- Voice capable
- Checked
- Native IM client
- Checked
- Battery safety
- Checked
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
32x37x3.6 in.
Relative humidity
95% or less
Stored temperature
-40C to
Operating temperature
–30C to
Weight
10 g
Voltage supply
3.7 V
Power consumption
2 Amps
