Nordic Semiconductor ASA

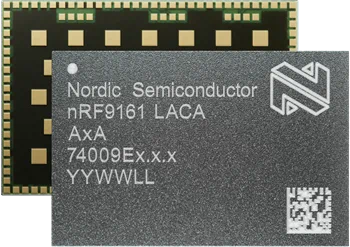

nRF9161
Contact manufacturer
SalesNordic Semiconductor ASA
nRF9161
Key features
- 64MHz Arm Cortex M33 Application CPU
- On Chip 1MB FLASH and 256kB RAM
- Embedded IPv4/IPv6 TCP/UDP, TLS/DTLS stack
- Crypto cell co-processor and TrustZone for trusted execution
- Low power 3GPP R14 Cat-M1/NB2 module with GPS
Product description
3GPP Release-14 low power LTE Cat-M1 & NB1/NB2-IOT chipset with GPS and integrated ARM M33 Application MCU/Flash/memory.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat NB2+M1
- Form factor
- Surface Mount/Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Standalone
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band8 (900 MHz)
Band12 (700 MHz)
Band17 (700 MHz)
Band18 (850 MHz)
Band20 (800 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band28 (700 MHz)
Software
FCC ID
2ANPO00nRF9161
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
0,16x0,10x0,010
Relative humidity
—
Stored temperature
-40 to 95
Operating temperature
-40 °C to 85
Weight
0,0165717073 lbs
Voltage supply
3,7
Power consumption
150 nA (system disabled), 1,7 uA (MCU off), 2,7 uA (sleep, PSM floor)
