Sequans Communications
GM02SP
Contact manufacturer
SalesAddress
Portes de la Défense 15-55, Boulevard Charles de Gaulle 92700 Colombes France
Phone
+33170721600
Sequans Communications
GM02SP
Key features
- All-in-one, single-mode LTE-M (eMTC) module
- 3GPP LTE Release 14 Cat M1
- Support LTE bands worldwide; Operating on bands 13 and 4 on Verizon network
- Fully software-compatible with first generation GM01Q (LTE-M) and NB01Q (NB-IoT) modules
Product description

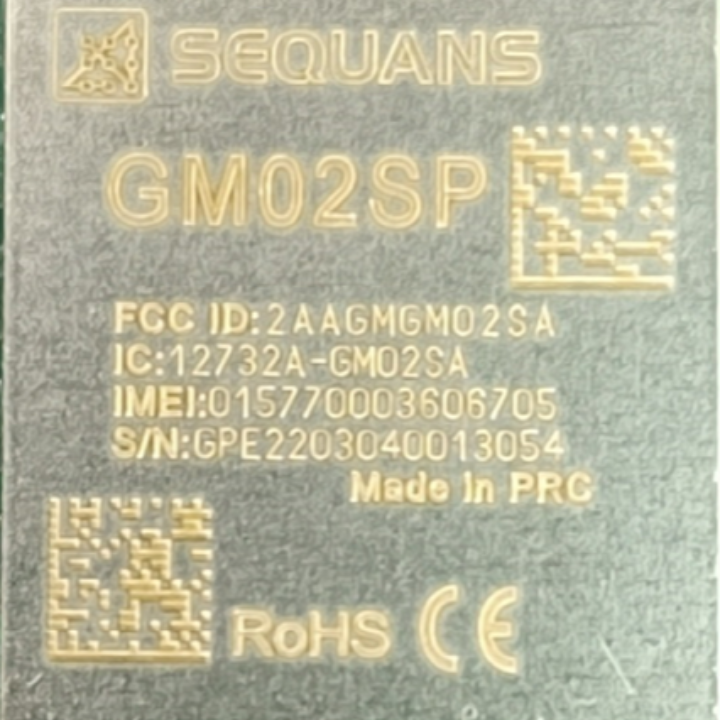

Monarch 2 GM02SP is an LTE Cat M1/NB1/NB2 and GNSS capable module based on Sequans’ second generation Monarch 2 chip platform. It is a pin-to-pin compatible variant of Monarch 2 GM02S, integrating a low-power GNSS best suited for Internet of Things tracking.
GM02SP is same as GM02S HW rev3 with additional RF switch to connect to an external GNSS antenna. GNSS service is not concurrent with LTE, processing can only be functional when module is not connected to LTE network.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- —
- GPS
- No
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band12 (700 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
2AAGMGM02SA
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
1.63x1.7x0.22 in.
Relative humidity
—
Stored temperature
—
Operating temperature
-40 °C to +85 °C
Weight
—
Voltage supply
2.5V to 5.5V
Power consumption
—
