Product description

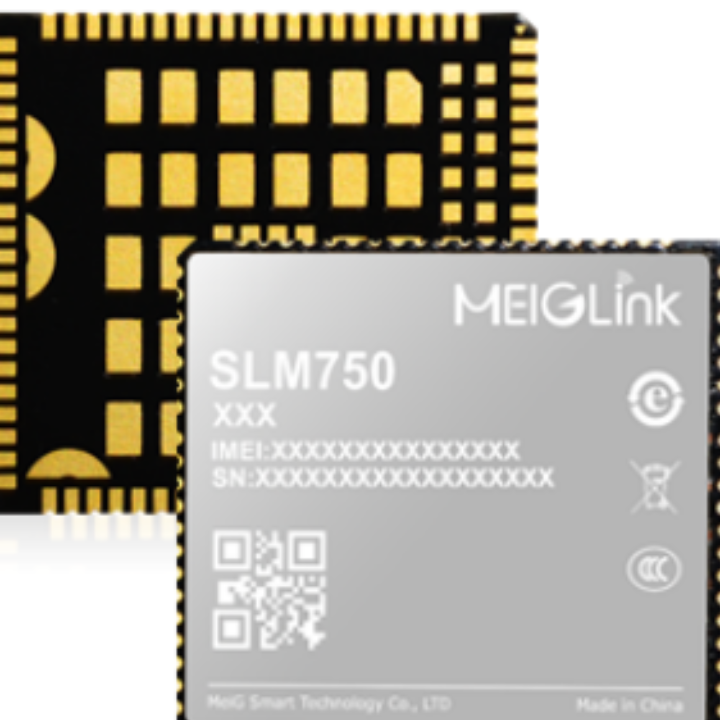

The SLM750 wireless module features:
*LTE Cat.4, DL/UL max: 150Mbps / 50 Mbps
*DC-HSPA : DL 42/UL 5.76 Mbps
*Embeded IP stack with IPv4 and IPv6 support
*Dimension: 32mm*29mm*2.5mm
*Operating temperature Range -30°C to 75°
*USB 2.0,Power on&off,I2C,UART,USIM,W_Disable,LED status,Wake_up in&out,ADC,GPIO,PCM, interface
*Support Windows,Linux 2.6.21 upper,Android4.0 upper os system
*Firmware update via USB
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- —
- GPS
- No
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band7 (2600 MHz)
Band12 (700 MHz)
Software
FCC ID
null
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- —
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
0.32x0.29x0.025 in.
Relative humidity
—
Stored temperature
-40 °C to 85 °C
Operating temperature
-30 °C to 75 °C
Weight
0.13 lbs
Voltage supply
—
Power consumption
—
