Quectel Wireless Solutions Co., Ltd.

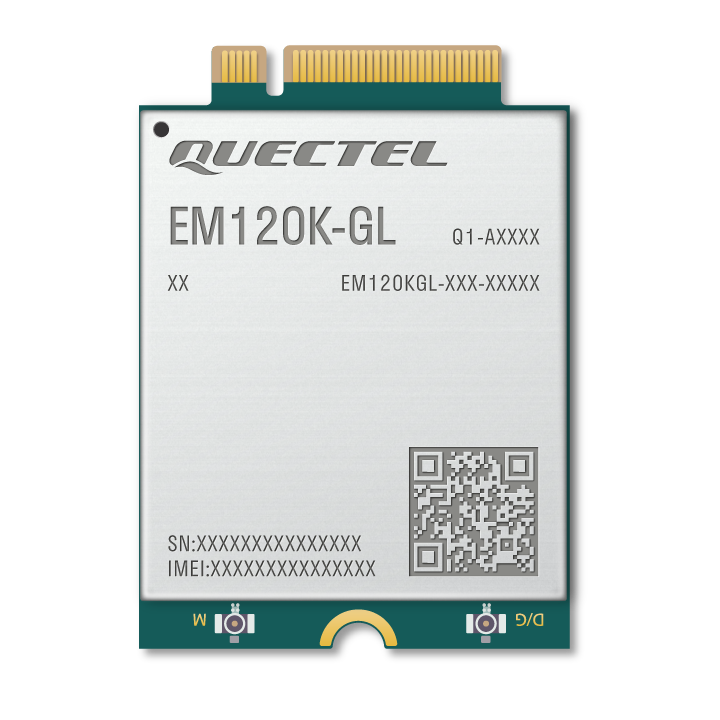

EM120K-GL
Key features
- LTE-A Cat 12 module with M.2 form factor
- Support DL 3 Carrier Aggregation and 256QAM
- Built-in eSIM (optional), DSSA
Product description
Quectel EM120K-GL is an LTE Advanced Category 12 module. Adopting the 3GPP Release 12 technology, the module supports a theoretical peak data rate of 600 Mbps in the downlink and a theoretical peak data rate of 150 Mbps in the uplink.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 12
- Form factor
- M.2
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- —
- GPIO
- Checked
- Serial
- —
- GPS
- Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- Checked
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
XMR2022EM120KGL
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- —
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE CBRS - Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
xx
Relative humidity
—
Stored temperature
—
Operating temperature
—
Weight
—
Voltage supply
—
Power consumption
—
