TELIT IOT SOLUTIONS INC.
LN920A12-WW
Key features
- M.2 (NGFF) High Speed LTE Data Card
- Cost-effective, no-compromise, scalable
- World-wide SKUs, suitable for deployment anywhere
- WCDMA fallback technology
- Telit AppZonesupport, allowing customers to develop own applications

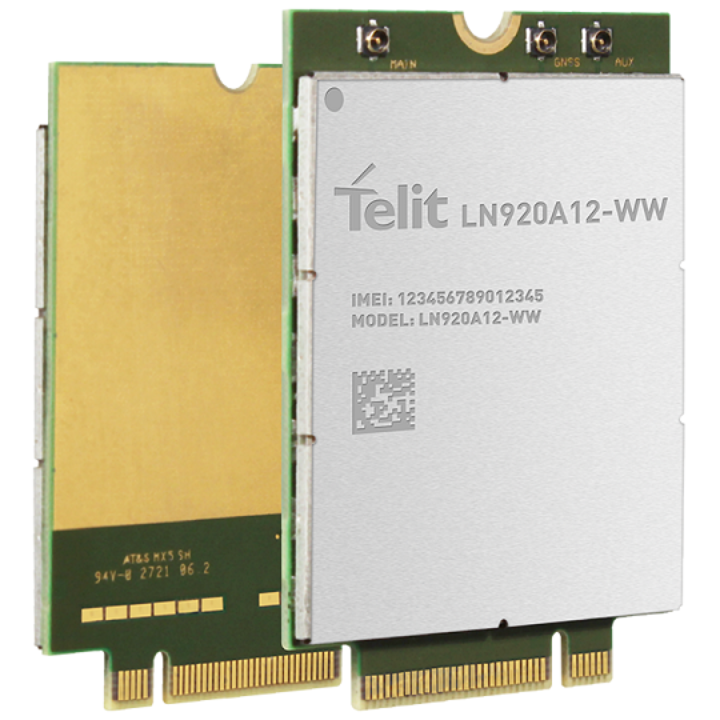

Product description
The LN920 M.2 data card is part of the family of Telit highspeed data cards. Designed in M.2 (NGFF) form factor, it is the natural evolution toward 5G technology. This data card ideal for worldwide deployments. Compatible with 3GPP Release (Rel) 12.
The LN920 series is designed for global use and suitable for both high-performance industrial and consumer applications, including fixed wireless access, enterprise routers and gateways, indoor and outdoor CPE, and mobile computing.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 12
- Form factor
- M.2
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- —
- GPIO
- Checked
- Serial
- Checked
- GPS
- —
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
RI7LN920
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Other features
- Voice capable
- —
- Native IM client
- Checked
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
LTE CBRS - Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
1.18x1.65x0.094 in.
Relative humidity
N/A
Stored temperature
-40 °C to 85 °C
Operating temperature
-40 °C to 85 °C
Weight
0.25 oz
Voltage supply
—
Power consumption
—
