Quectel Wireless Solutions Co., Ltd.

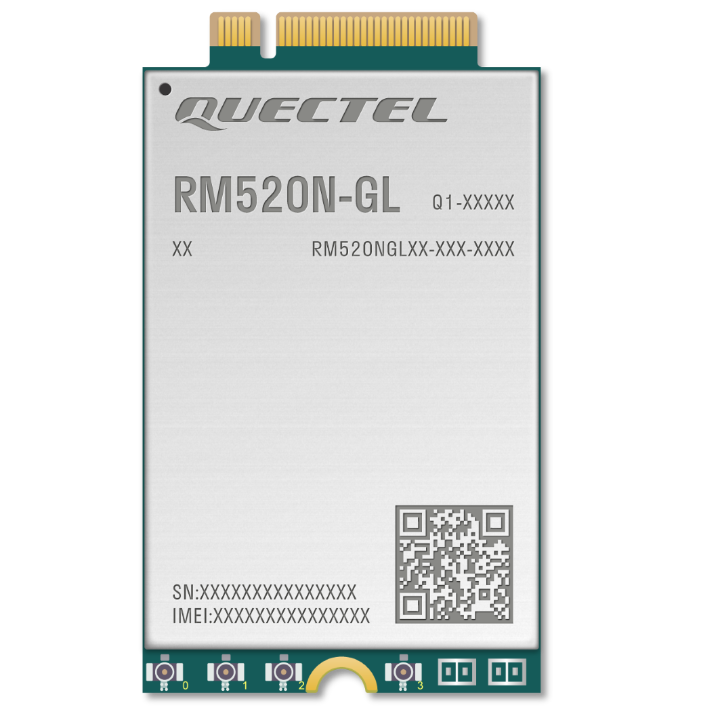

RM520N-GL
Product description
Quectel RM520N-GL module is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel-16 technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM520N-GL is compatible with Quectel 5G module RM50xQ-AE, LTE-A Cat6 module EM06, Cat 12 modules EM12-G/EM12xR-GL and Cat 16 module EM160R-GL, which facilitates customers’ migration from LTE-A to 5G.
RM520N-GL is an industrial-grade module for industrial and commercial applications only.
Overview
- Network technology
- 5G NR SA + 5G NR NSA + LTE + Global Bands
- LTE category support
- Cat 19
- Form factor
- M.2
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- Checked
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band8 (900 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band17 (700 MHz)
Band18 (850 MHz)
Band20 (800 MHz)
Band25 (1900 MHz)
Band26 (850 MHz)
Band28 (700 MHz)
Band40 (2300 MHz)
Band41 (2500 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n48
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
NSA FR2 (mmWave) n260
NSA FR2 (mmWave) n261
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
NSA FR1 Roaming n78
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
Data Only
IMS
FCC ID
XMR2023RM520NGL
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- ALO (Airborne LTE Operations)
- —
- Battery safety
- —
- Developer Kit
- —
- Diagnostics
- Checked
- eUICC
- —
- Global Capable
- Checked
- Mobile Private Network
- —
- Native IM client
- —
- Network Slicing
- —
- NTN (Satellite) Capable
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
LTE CBRS
5G Licensed - SMS Capability
- Checked
- Voice capable
- —
Chassis & power source
Dimensions
0.3x8.7gx0.023 in
Relative humidity
—
Stored temperature
-40 °F to +85 °F
Operating temperature
--30 °F to +75 °F
Weight
8.7g lbs
Voltage supply
—
Power consumption
—
