Fibocom Wireless Inc.

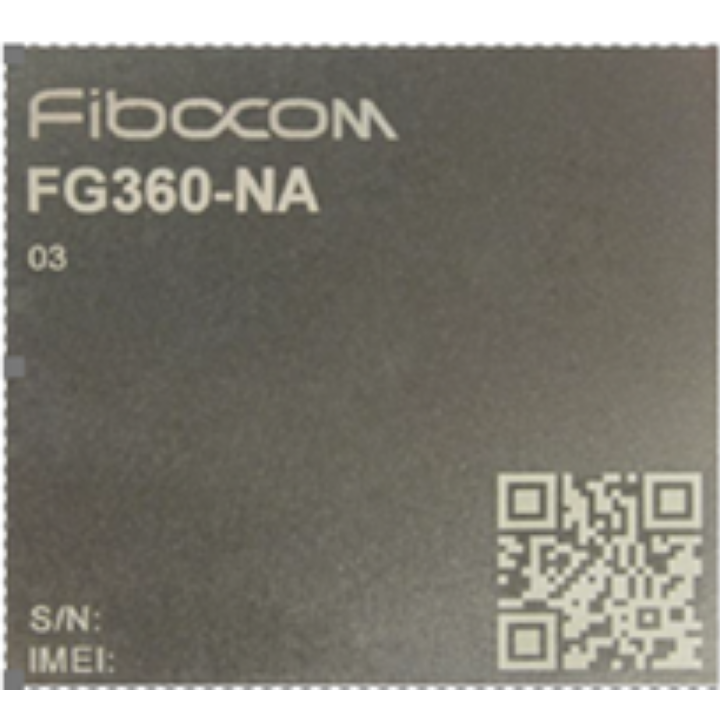

FG360-NA
Fibocom Wireless Inc.
FG360-NA
Key features
- 5G Module, LGA form factor, Data, OpenWrT
- Built in QuadCore CPU, memory and Hardware Accelerator
- Rich interface of PCIe3.0, SGMII, MIPI and SPI
- Downlink 4x4 MIMO and Uplink 2x2 MIMO
- Flexible Wifi6 CPE reference design
Product description
1. Small ,Slim LGA form factor
2. High speed data module , Cat19 LTE
• NSA DL Peak: 3.74Gbps UL: 1.25Gbps
• LTE: DL ~1.6Gbps (CAT19) UL: 211Mbps（CAT18）
3. Rx diversity for 3G/4G/5G
4. 6 ANT supported and 1 GNSS
5. Low power and low cost
Overview
- Network technology
- 5G NR NSA + LTE
- LTE category support
- Cat 19
- Form factor
- Other
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- —
- GPIO
- Checked
- Serial
- —
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
SA FR1 (Sub6) n2
SA FR1 (Sub6) n5
SA FR1 (Sub6) n48
SA FR1 (Sub6) n66
SA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n66
NSA FR1 Roaming n77
NSA FR1 Roaming n78
- GPRS
-
1800 MHz
1900 MHz
850 MHz
900 MHz
- GSM
-
1800 MHz
1900 MHz
850 MHz
900 MHz
Software
FCC ID
ZMOFG360NA
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
4.1x4.4x0.275 in.
Relative humidity
—
Stored temperature
-40 °C to 85 °C
Operating temperature
-30 °C to 75 °C
Weight
0.423 oz
Voltage supply
—
Power consumption
—
