Quectel Wireless Solutions Co., Ltd.

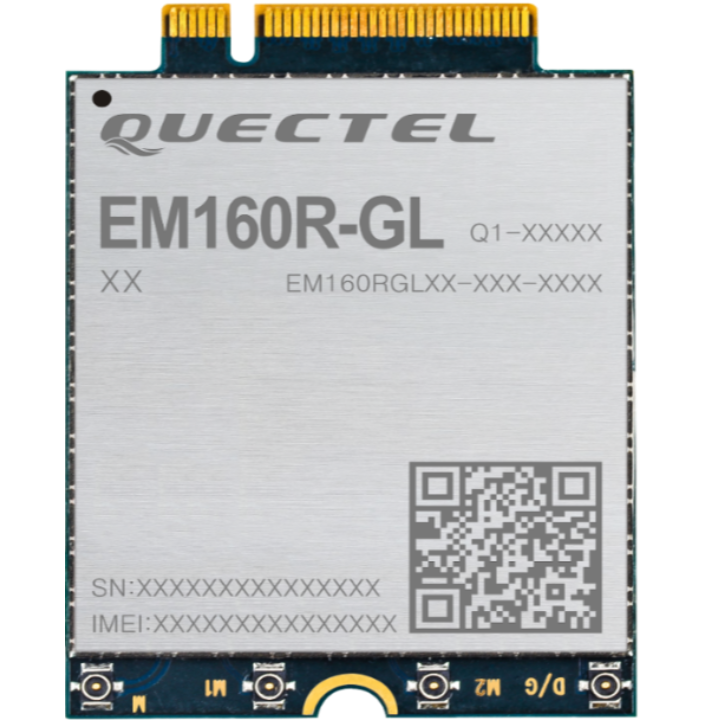

EM160R-GL
Key features
- Support DL 5x carrier aggregation and 256QAM
- Multi-constellation GNSS receiver available for applications
- MIMO technology
- PCIE Interface
Product description
Quectel EM160R-GL is an LTE Advanced Category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 16
- Form factor
- M.2
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- —
- GPIO
- —
- Serial
- —
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
Software
FCC ID
XMR2020EM160RGL
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- —
- eUICC
- Checked
- Private Wireless Network (On Site)
-
Checked
- Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
4.2cmx3.0cmx0.23cm in.
Relative humidity
—
Stored temperature
-40 °C to 85 °C
Operating temperature
-25 °C to 75 °C
Weight
6.8g lbs
Voltage supply
—
Power consumption
—
