Quectel Wireless Solutions Co., Ltd.
EG25-G
Contact manufacturer
SalesAddress
Building 13, Shanghai Business Park Phase III (Area B), No.1016 Tianlin Road, Minhang District, Shanghai, China 200233
Phone
+86 21 5108 6236
Quectel Wireless Solutions Co., Ltd.
EG25-G
Product description

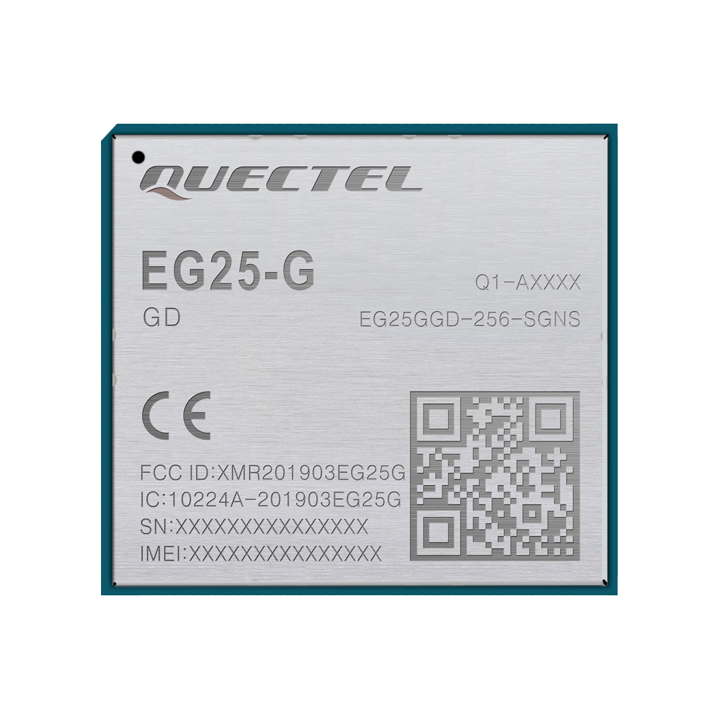

The EG25-G(D) is a LTE Category-4 module, supports band 4&13&12. Supports data only.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat 4
- Form factor
- LCC
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- Checked
- GPS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band12 (700 MHz)
Software
FCC ID
XMR201903EG25G
FoTA For Baseband/Modem Software Update Capability
—
FoTA Client Type
—
Other features
- Voice capable
- Checked
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed - Network Slicing
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
3.2x2.9x0.24 cm.
Relative humidity
—
Stored temperature
-40 °C to 90 °C
Operating temperature
-40°C °C to 85 °C
Weight
4.6g lbs
Voltage supply
3.3 - 4.3VDC, 3.8V typ.
Power consumption
—
