Sequans Communications
GM02S
Key features
- All-in-one, single-mode LTE-M (eMTC) module
- 3GPP LTE Release 14 Cat M1
- Support LTE bands worldwide; Operating on bands 13 and 4 on Verizon network
- Fully software-compatible with first generation GM01Q (LTE-M) and NB01Q (NB-IoT) modules
Product description

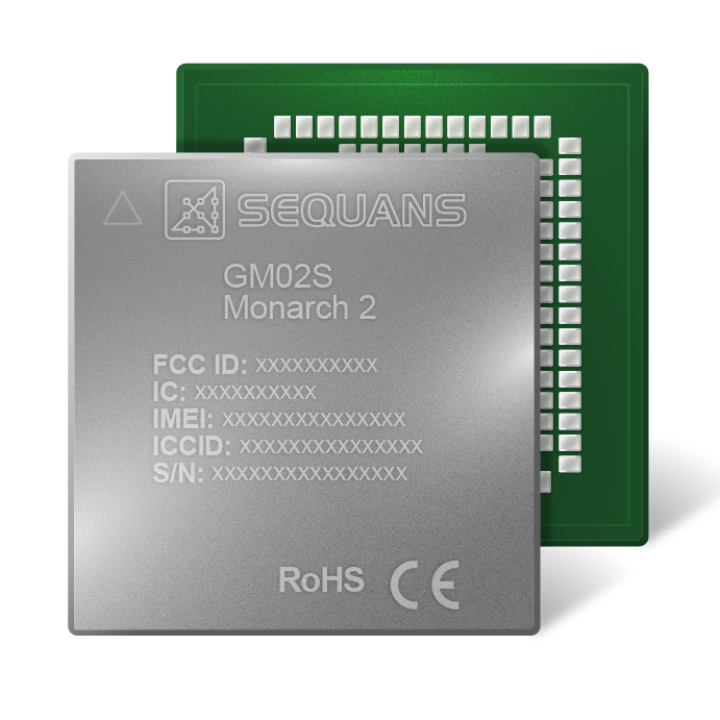

The Monarch 2 GM02S is an LTE Cat M1/NB1/NB2 module based on Sequans'
second generation Monarch 2 chip platform. GM02S is a total module
solution, including a complete, Single-SKU™ RF front end for deployment in
any band worldwide, and an integrated EAL5 Secure Element (SE) enabling
the integration of the SIM inside the module with zero compromise on
security.
Overview
- Network technology
- LTE + Global Bands
- LTE category support
- Cat M1
- Form factor
- Surface Mount / Soldered
Hardware & Network
Features
- UDP
- Checked
- TCP
- Checked
- UART
- Checked
- GPIO
- Checked
- Serial
- —
- GPS
- —
- LTE
-
Band4 (1700 MHz)
Band13 (700 MHz)
- LTE Global / Roaming
-
Band12 (700 MHz)
Supported Global/Roaming Markets
- Canada/Mexico
- —
- Europe
- —
- Asia
- —
- Puerto Rico/Latin America
- —
Software
FCC ID
null
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution (only)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- Checked
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- —
- Global Capable
- Checked
- eUICC
- —
- Private Wireless Network (On Site)
- —
- Mobile Private Network
- Checked
Chassis & power source
Dimensions
1.63x1.7x0.185 in
Relative humidity
—
Stored temperature
—
Operating temperature
-40 °C to +85 °C
Weight
—
Voltage supply
2.5V to 5.5V
Power consumption
—
