Quectel Wireless Solutions Co., Ltd.

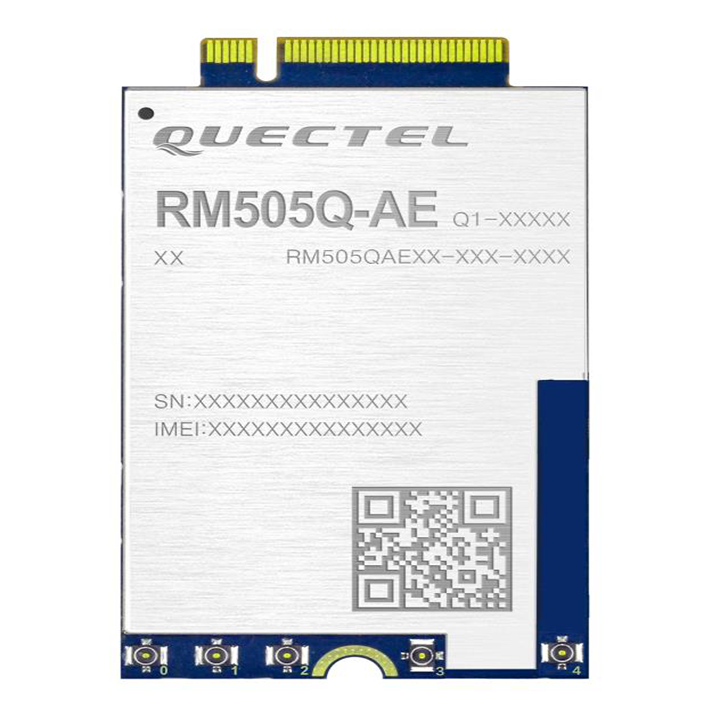

RM505Q-AE
Key features
- 5G NR Sub-6 Bands Supported
- LTE Cat 16 DL: Max. 1.0 Gbps UL: Max. 200 Mbps
- Multi-constellation GNSS
Product description
Quectel RM505Q-AE is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Rel-15 LTE technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM505Q-AE is compatible with Quectel Cat 12 module EM12 and Cat 16 module EM160, which facilitates customers’ migration from LTE-A to 5G.
Overview
- Network technology
- 5G NR NSA + LTE + Global Bands
- LTE category support
- Cat 16
- Form factor
- M.2
Hardware & Network
Features
- UDP
- —
- TCP
- —
- UART
- Checked
- GPIO
- —
- Serial
- —
- GPS
- Assisted And Standalone
- LTE
-
Band2 (1900 MHz)
Band4 (1700 MHz)
Band5 (850MHz)
Band13 (700 MHz)
Band48 (3500 MHz)
Band66 (1700 MHz)
- LTE Global / Roaming
-
Band1 (2100MHz)
Band3 (1800MHz)
Band7 (2600 MHz)
Band12 (700 MHz)
Band14 (700 MHz)
Band40 (2300 MHz)
Band46 (5200 MHz)
- 5G
-
NSA FR1 (Sub6) n2
NSA FR1 (Sub6) n5
NSA FR1 (Sub6) n66
NSA FR1 (Sub6) n77
- 5G Global / Roaming
-
NSA FR1 Roaming n77
NSA FR1 Roaming n78
Software
FCC ID
XMR2020RM505QAE
FoTA For Baseband/Modem Software Update Capability
Verizon FoTA Solution and Non Verizon FoTA solution (combined)
FoTA Client Type
LWM2M
Other features
- Voice capable
- —
- Native IM client
- —
- Battery safety
- —
- SMS Capability
- Checked
- Developer Kit
- —
- ALO (Airborne LTE Operations)
- —
- Diagnostics
- Checked
- Global Capable
- —
- eUICC
- —
- Private Wireless Network (On Site)
-
Checked
LTE Licensed
LTE CBRS
5G Licensed - Network Slicing
- —
- Mobile Private Network
- —
Chassis & power source
Dimensions
5.2x3x0.23 in.
Relative humidity
—
Stored temperature
-40 °C to +85 °C
Operating temperature
-20 °C to +60 °C
Weight
8.5g lbs
Voltage supply
3.135–4.4 V, typical 3.7 V
Power consumption
—
